420 Heco Wood & Coal Cookstove

420 Heco Wood & Coal Cookstove

Heco cookstoves are manufactured by the Amish in Lancaster County, PA - original Amish country.

The model 420 is a wood and coal burning cookstove built for functionality, designed with ease of use in mind. The glass firebox door provides an expansive viewing area, allowing you to enjoy a clear view of the blazing fire. The glass oven door option provides the ability to view your baked goods without opening the door, perfect for souffle!

Page updated 4/30/21

  • Description
  • Specifications
  • Photos (47)
  • Pricing
  • Extended Info
  • Videos (20)
  • Add Review

Obadiah's has partnered with heco to represent the newest Amish line of wood and coal cookstoves. The heco wood-burning cookstoves are the latest kitchen cook ranges available in the North American market. The heco product line of cooking and heating ranges displays the quality you expect from the Amish, with upgraded features to meet the demands of modern-day cooking. The standard porcelain enamel cooktop provides easy clean up for spills while cooking. The 420 wood burning cook stove provides the oven cleanout on the front of the stove for easy access cleaning, perfect for tight clearance applications.

The heco wood cookstoves are manufactured and produced by the Amish in PA.  Obadiah's has contributed various design ideas that have been collaborated into these wood-burning cook ranges. This wood cookstove is sure to please all your heating, cooking, baking, and hot water needs. With upgrades options and styles to fit any style of decor.

Heco wood cookstoves are made from American steel.

All heco cookstoves meet WA State Standards. All Wood Burning Cook Stoves are currently EPA Exempt from regulations.

Obadiah's is the exclusive online retailer for heco wood cookstoves.

Interested in using this stove to heat Domestic Hot Water? Check out the Vaughn Range Boiler for more information on setting up a Domestic Hot Water system.


Features

  • Heating capability up to 2,500 sq. ft.
  • External Shaker Handle (for coal burning)
  • Automatic Thermostat Damper Control
  • Ash Pan below Firebox
  • Oven Cleanout located directly below Baking Oven
  • Burn times up to 12 hours
  • Black porcelain enamel finish standard
  • Large firebox with easy loading access
  • (3) damper controls - Bypass Damper on Front, Airwash on Front, Thermostatic Damper control on the rear
  • Food-grade porcelain enamel lined oven
  • Removable tray in the bottom of the oven for easy cleanup
  • Fully removable porcelain oven
  • Secondary combustion system
  • High-efficiency reburn air tubes
  • 1/4" memory steel or porcelain enamel (3) piece removable cooktop*
  • Oven Thermometer
  • Airtight firebox and oven doors
  • Stainless steel protective rails surround the cooktop
  • UL Listed
  • EPA Exempt (learn more here)
  • Washington State Approved (learn more here)

Options

  • 22 Gallon Stainless Steel Water Reservoir
  • Glass Firebox Door

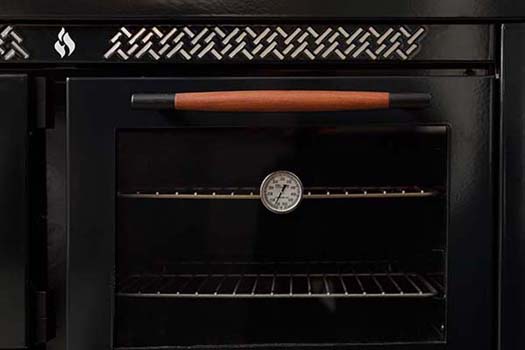

  • Glass Oven Door
  • Stainless Steel Water Coil (For Domestic Hot Water Heating)

View our article on how to plumb a wood-burning cookstove into a domestic hot water system.


Resources:
420 Wood Cook Stove Product Specifications Safety Tested to UL 1482 and Safety Tested to UL 1482 and CAN/ULC S627
Overall Dimensions 33.5” L x 47.25” W x 35.25” H
Height to Warming Shelf 55.5” H
Hearth Pad Requirements 58” W x 48” D
Cooktop dimensions 42.25" W x 21" D
Cooktop options: 3 piece design in polished steel or porcelain over polished steel. Also available in 1/4' polished steel cook top with 2 removable lids. 39” W x 21” D
Warming Shelf 7" x 37"
Back 37" W x 20-1/4" H
Firebox Glass Viewing Area 14 3/4"W x 8 /3/4"H
Oven Glass Viewing Area 16"W x 10 3/4"H
Oven Dimensions 21” D x 18” W x 13” H
Oven capacity 2.84 cubic feet
Firebox Dimensions 19” L x 12” W x 17” H
Firebox Size 2.24 cubic feet
Log Length 18"
Firebox Door 12” W x 9.5” H
Approx. Burn Time 8 to 12 hours
Approx. Heating Area 700 to 2,000 sq. ft.
Output Up to 60,000 BTU/h
Fuel Wood and Coal (Anthracite Coal Only)
Flue Outlet Size 6" round
Water Reservoir Capacity (sold separately) 22 gallons
Weight 775 lbs.
Warranty 5 Year
Safety Tested to UL 1482 and CAN/ULC S627
Clearances
Unit to Left Wall 18” / 457MM
Unit to Back Wall *from flue collar not from back of stove 18” / 457MM
Unit to Back Wall w/ Heat Shield 12" / 305MM
Unit to Right Wall 12" / 305MM
Front 48" / 1220MM
Unit to Ceiling 36" / 915MM
Chimney Connection to Wall 18" / 457MM
Corner Installation 10" / 254MM
Flooring Protection
Set the cookstove on a solid, noncombustible floor
Use a code approved noncombustible floor board (Type 1 Board)
The material must extend at least 16” in front of, 8” on either side of, in back of and underneath of the chimney connector

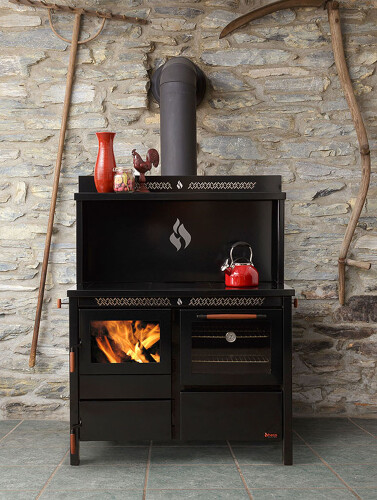

420 / 520heco Wood and Coal Cookstove
420 Heco Wood & Coal Cookstove
420 / 520 heco Wood and Coal Cookstove
420 Heco Wood & Coal Cookstove
420 / 520 heco Wood and Coal Cook Range
420 Heco Wood & Coal Cookstove
420 / 520 heco Wood and Coal Cooking Range - Porcelain Enamel Finish
420 Heco Wood & Coal Cookstove

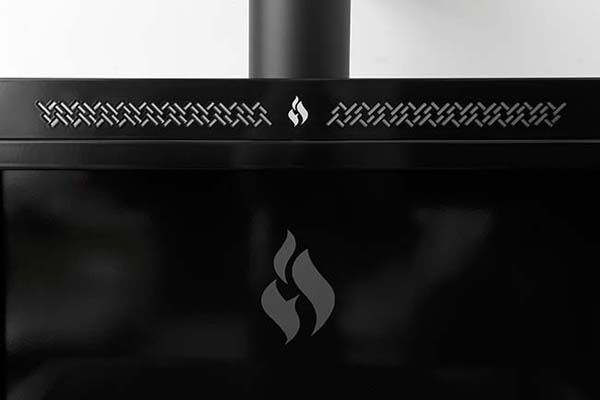

420 / 520 heco Wood and Coal Burning Cook Range - Backsplash and Shelf
420 Heco Wood & Coal Cookstove

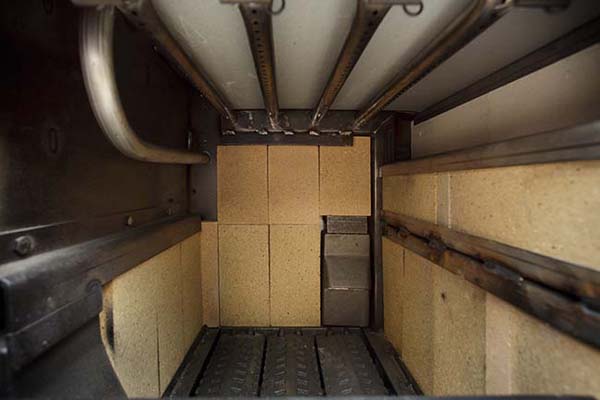

420 / 520 heco Wood and Coal Burning Cookstove - Firebox
420 Heco Wood & Coal Cookstove

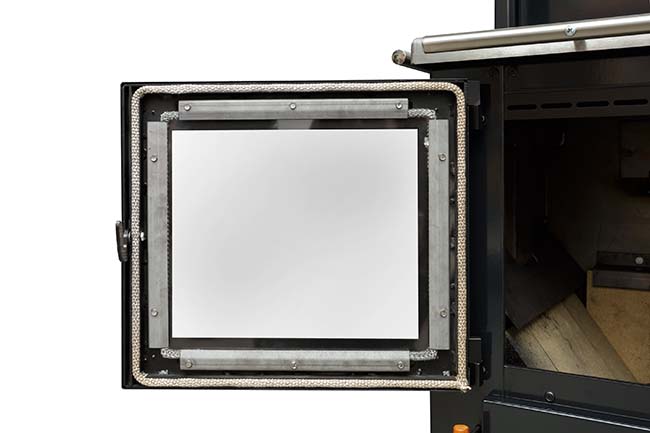

420 / 520 heco Wood and Coal Burning Cook Stove - Glass Firebox Door
420 Heco Wood & Coal Cookstove
420 heco Wood and Coal Burning Cooking Stove - Firebox Door Handle
420 Heco Wood & Coal Cookstove
420 / 520 heco Wood and Coal Fired Cook Stove - Oven Door Handle
420 Heco Wood & Coal Cookstove

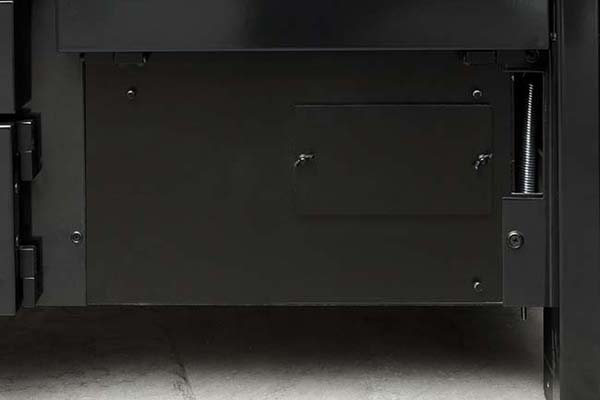

420 / 520 heco Wood and Coal Cook Range - Oven Clean Out Access
420 Heco Wood & Coal Cookstove

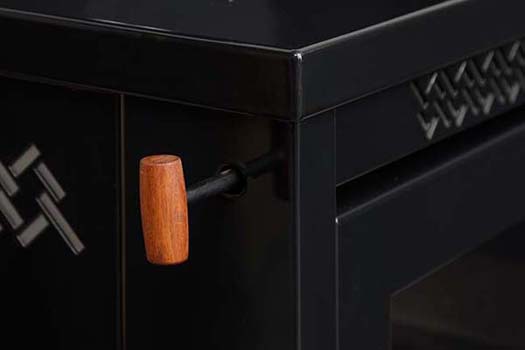

420 heco Wood and Coal Cooking Range - Air Damper Control
420 Heco Wood & Coal Cookstove

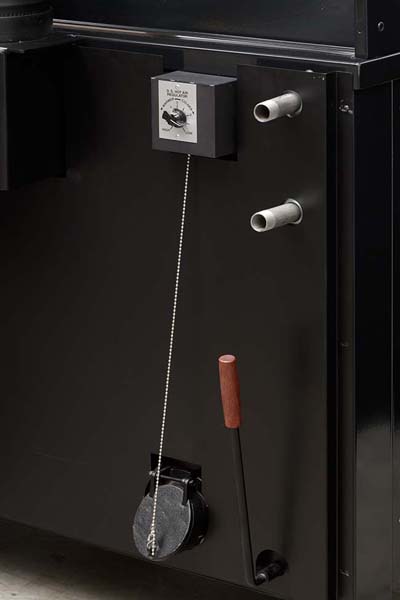

420 heco Wood and Coal Cookstove - Thermostatic Damper Control
420 Heco Wood & Coal Cookstove
420 heco Wood and Coal Burning Cookstove - Shaker Handle
420 Heco Wood & Coal Cookstove
420 heco Wood and Coal Fired Cook Stove - Thermostatic Control Damper Plate
420 Heco Wood & Coal Cookstove

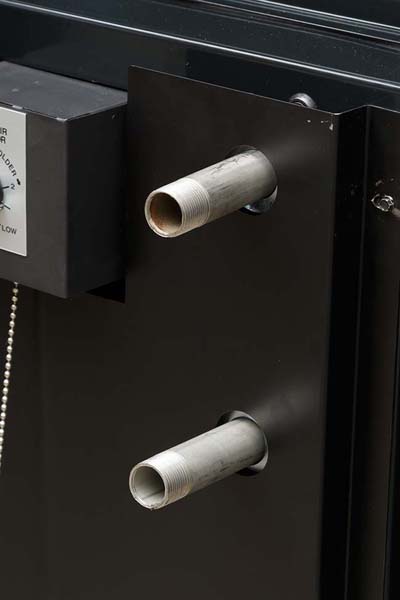

420 / 520 heco Wood and Coal Cook Stove - Domestic Hot Water Coil
420 Heco Wood & Coal Cookstove

420 Heco Wood & Coal Cookstove

420 Heco Wood & Coal Cookstove

420 Heco Wood & Coal Cookstove

420 Heco Wood & Coal Cookstove

420 Heco Wood & Coal Cookstove

420 Heco Wood & Coal Cookstove

420 Heco Wood & Coal Cookstove

420 Heco Wood & Coal Cookstove

420 Heco Wood & Coal Cookstove

420 Heco Wood & Coal Cookstove

420 Heco Wood & Coal Cookstove

420 Heco Wood & Coal Cookstove

420 Heco Wood & Coal Cookstove

420 Heco Wood & Coal Cookstove

420 Heco Wood & Coal Cookstove

420 Heco Wood & Coal Cookstove

420 Heco Wood & Coal Cookstove

420 Heco Wood & Coal Cookstove

420 Heco Wood & Coal Cookstove

420 Heco Wood & Coal Cookstove

420 Heco Wood & Coal Cookstove

420 Heco Wood & Coal Cookstove

420 Heco Wood & Coal Cookstove

420 Heco Wood & Coal Cookstove

420 Heco Wood & Coal Cookstove

420 Heco Wood & Coal Cookstove

420 Heco Wood & Coal Cookstove

420 Heco Wood & Coal Cookstove

420 Heco Wood & Coal Cookstove

420 Heco Wood & Coal Cookstove

420 Heco Wood & Coal Cookstove

420 Heco Wood & Coal Cookstove

Click here to order!



This product qualifies for free residential delivery with lift gate service within the lower 48 states. A large freight truck (18-wheeler up to 60' long) is standard on all deliveries. If you need a smaller truck, please call our office (406) 300-1776 to request a smaller truck size. Note: an upcharge may apply for smaller trucks.

** Residential, curbside delivery via freight truck with a lift gate is included for shipping in the Continental U.S.A. (some exceptions may apply). Please inquire with our sales staff if you have specific shipping needs such as international, freight terminal and/or business deliveries or if you need a smaller truck size. Click here to see Obadiah's Shipping Terms.

Please call or email us today to order! One of our sales consultants will help you on your way to great, home wood-fired heating!

CLICK HERE TO VISIT OUR NEWER WEBSITE WHERE YOU CAN FIND PRICING AND MORE INFORMATION

Be sure to check out our newly improved Cookstove Community website cookstoves.net; the best place online to connect with other cookstove users over stoves, self-sufficient living, alternative energy, and more! Take a look at our selection of videos, articles, and photos, and be sure to visit the forums to connect with like-minded folks from all over.

If you are planning to cook with a cookstove, you will need to understand some basic fire safety. Remember, extinguishing a grease or oil fire with water is not a good idea.

Heco 420/520 Wood & Coal Cook Stove - Product Overview

Heco 420/520 Wood & Coal Cook Stove - First Burn

Heco 520/420 vs Kitchen Queen Cook Stove - Review

Cooktop Review: Obadiah’s 2000 Wood Cookstove by Heco

Heco Wood Cookstove Comparison - 420, 520, and Obadiah 2000 Cookstove

420 and 520 Heco Wood Cookstoves - The Firebox

Changes to Heco Cook Stoves

Heco Cookstoves - Options For Heco Cookstoves

Obadiah’s - Summer Kitchen Customer Review (Heco 420 Wood Cookstove)

Heco Wood Cook Stove – Cook Top Options

Hot Water Options – Water Reservoir, Domestic Hot Water, Hydro

Shopping Wood Cook Stoves - Domestic Hot Water Wood Cookstoves

Shopping Cookstoves - What Wood Cook Stoves Have Water Reservoirs?

How to Easily Move a Heco Cookstove - Moving a Heavy Cook Stove

How to Operate your Heco Cook Stove - Damper Controls for Wood Cookstove

Heco Cook Stove - Heat Shield Option for the Heco Cookstove

The Heco Series Wood Cook Stove by DS Stoves

The 520 & 420 HECO Wood Cook Stove by DS Stoves

Heco Wood Cook Stoves - Features

Heco - 520 & 420 Three Panel Top Installation



April 24, 2020
Reviewer: Dennis
We have used our 420 HECO wood stove for two winters so far. We have a well insulated 1320 sq,ft. home. This wood stove is able to keep the front part of our home 75-78 degrees with only three pieces of wood. I have discovered the stove works best with the wood arraigned in a pyramid. We have to add wood every three to four hours to keep the house warm. If I use more wood that this I am afraid to over fire the wood stove. It does keep coals of hours. I built an 16x20 addition to our for the HECO wood stove as it weighs about 800 lbs. The wood stove was shipped very well in a strong crate.
