Empyre Elite XT 200 Indoor/Outdoor Wood Gasification Boiler/ Forced Air Furnace - Disconinued

Empyre Elite XT 200 Indoor/Outdoor Wood Gasification Boiler/ Forced Air Furnace

This product has been discontinued, and all inventory has been sold. This is an informational page for those who have already purchased the unit.

Empyre Elite 200 uses a process called wood gasification to produce highly efficient combustion in the furnace’s dual burn chambers. Wood in the firebox burns from the bottom up, drying the top layer of wood in the firebox and pushing gases and exhaust into the lower burn chamber. In the lower chamber, temperatures as high as 2000 F burn off all the gases. The fire brick lining in both burn chambers absorbs the heat and maintains burn chamber temperatures for consistent combustion. This high temperature gasification significantly lowers emissions, prevents creosote buildup, and minimizes ash buildup in the furnace. After passing through the burn chamber, exhaust air is forced through multiple flues running through the water jacket, heating the water quickly and efficiently.


  • Description
  • Specifications
  • Photos (1)
  • Pricing
  • Extended Info
  • Add Review

Elite XT 200 Features:

  • Heat multiple buildings and domestic water
  • Sleek design for flexible installation
  • Easily installed outside or inside
  • Side mounted control panel with weather shield
  • Enhanced insulation including chimney location
  • Weather-guard doors, front and back
  • Refires automatically from standby
  • 72,000 - 200,000 BTU output
  • 89% Efficiency
  • Power assisted venting no worry about chimney draw
  • Burns ordinary fire wood 11-25% moisture- no need to store wood indoors the most forgiving unit on the market
  • Burns large and small fire wood
  • 10-12 hour burn cycles
  • No smoke out loading door
  • Very few electrical components (controller and blower under 250)
  • Very easy to service - blower and controller can be changed by homeowner in minutes
  • Very little ash only a couple cups per week - unit does not have to be out or cold for service
  • CSA/UL listed for indoor installation with very low clearance to combustibles 12" on sides
  • No need for back-up power, wild loop, dump zone, back-up pump in case or power or pump failure - unit will not boil over by fire box design
  • No need for water storage tank
  • Not a batch burn where you have to light several fires per day, only start the unit once per year
  • No smoldering fire between cycles - fuel lays there as charcoal
  • Relights on its own after laying dormant for hours - no need for a propane burner to keep unit going
  • Extremely competitive pricing - you cannot heat cheaper and leave a smaller carbon foot print than with an Empyre Elite or a Pro-Series Furnace






Resources:
Empyre Elite Specs
Heat Output (Peak) 220,000 BTU/Hr
Heat Output ( 8 Hr Burn) 110,000 BTU/Hr
Heat Output ( 12 Hr Burn) 72,000 BTU/Hr
Furnace Width 31.5"
Furnace Height 57"
Furnace Length 61"
Firebox Dimensions 22.5"w x 26"h x 31.5"d
Firebox Volume 10'
Loading Door Opening 18.5" x 16.5"
Flue Collar Diameter 6"
Log Length 25"
Log Diameter 6"
Shipping Weight 995 lbs
Water Capacity 112 US Gal
Minimum Clearance to Combustibles
Flue Pipe/Side & Back Wall 12"
Front 48"
Ceiling 24"
Sizes and Models of the Heat Handler
WAH-90
Outside Dimensions 22-3/4" w 24" l 20-5/8"h
Total Weight 105 lbs
Max BTU Output 105,000
Max CFM Output 1,400
Load Amps 3.3
HP 1/4
RPM 1,075
Fan Speeds Coil Size
Blower Fan 16" 4 Blade
Thermostat Direct Inline
Noise Control Insulation N/A
Outlet Size 1"
Air Filter Size 20" x 20"
Electronic Requirements 115 volts
Louvers Included
WAH-110
Outside Dimensions 25-3/4" w 33-1/4"l 20-1/8" h
Total Weight 112 lbs
Max BTU Output 150,000
Max CFM Output 2,000
Load Amps 7.4
HP 1/2
RPM 1,075
Fan Speeds 3
Coil Size 4 row 15" x 20"
Blower Fan Squirrel Cage
Thermostat 24 volt trans & relay
Noise Control Insulation 1/2" high density acoustic
Outlet Size 1"
Air Filter Size 20"X24"
Electronic Requirements 115 volts
Louvers Optional
WAH-220
Outside Dimensions 35-3/4" w 34-1/2" l 20-1/8" h
Total Weight 145 lbs
Max BTU Output 225,000
Max CFM Output 2,500
Load Amps 9.1
HP 3/4
RPM 1,075
Fan Speeds 3
Coil Size 4 row 20" x 30"
Blower Fan Squirrel Cage
Thermostat 24 volt trans & relay
Noise Control Insulation 1/2" high density acoustic
Outlet Size 1"
Air Filter Size 32" x 24"
Electronic Requirements 115 volts
Louvers optional

Empyre Elite XT 200 Indoor/Outdoor Wood Gasification Boiler/ Forced Air Furnace

Be sure to check out our newly improved Cookstove Community website cookstoves.net; the best place online to connect with other cookstove users over stoves, self-sufficient living, alternative energy, and more! Take a look at our selection of videos, articles, and photos, and be sure to visit the forums to connect with like-minded folks from all over.

If you are planning to cook with a cookstove, you will need to understand some basic fire safety. Remember, extinguishing a grease or oil fire with water is not a good idea.

For help choosing and installing a wood boiler, see the links and posts below.

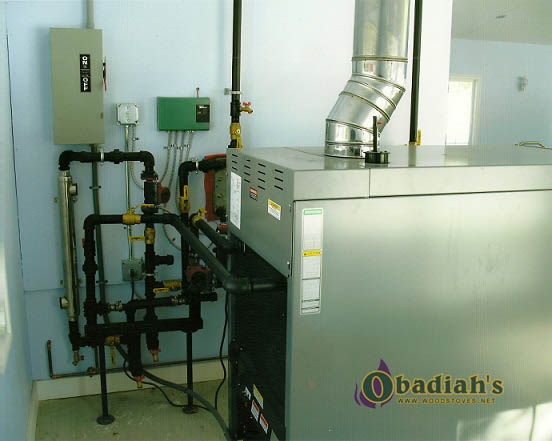

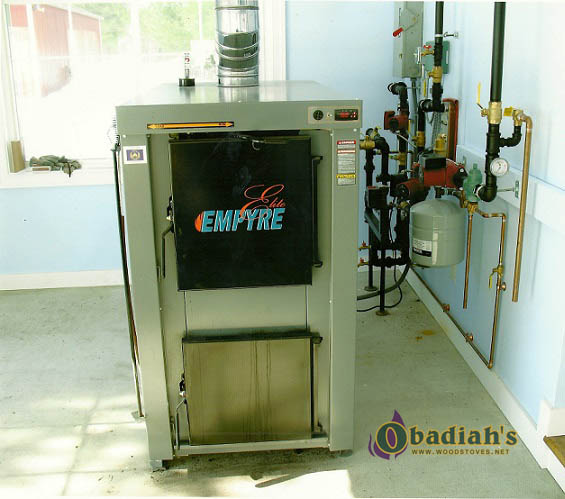

  • Installations
