DS Stoves 1600 Circulator Coal Stove

DS Stoves 1600 Circulator Coal Stove

No Electricity Needed - Burn Time 24 to 48 hrs!!!

The DS1600 Circulator is Amish made and is built for natural circulation of heat – no electricity or fan needed!  The stove’s heat is moved by natural convection – heat is transferred by means of currents in the air.  The automatic secondary air makes for a clean and efficient burn and the heat of the DS 1600 stove is easily controlled by one knob.   The 1600 circulator is manufactured in the USA and is UL listed.  UL listing of The DS circulator is for coal use only.

  • Description
  • Specifications
  • Photos (22)
  • Pricing
  • Videos (1)
  • Add Review

The DS1600 circulator by D.S. Machine Stoves is Amish designed and hand crafted to provide heat for the home and be clean burning and amazingly efficient without the use of fans or electricity.





The heated air from the heat exchanger tubes of the coal stove continues to rise until it has cooled by transferring its thermal energy to the rest of the surrounding air and falls back down to the heat source at which point a convection cycle will begin.





Hot water or hot air bimetal regulators are standard in all DS Machine Stoves and the DS1600 also has the following features.



Features:

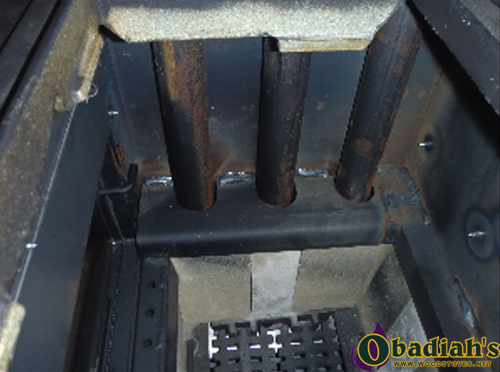

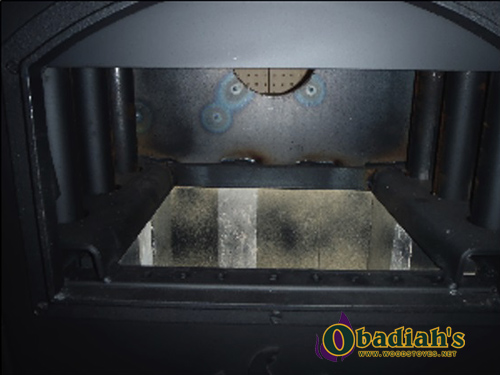

  • Heat exchanger tubes through the firebox

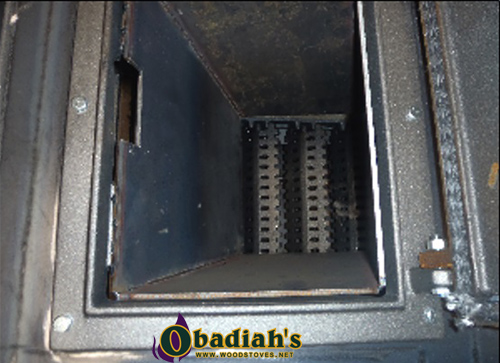

  • Gravity fed coal hopper – holds 60 lbs.
  • Removable coal hopper

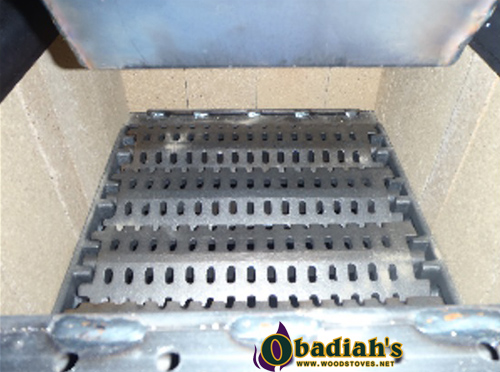

  • Cast iron doors and grates

  • Burn time 24 to 48 hours
  • Exterior shaker handle minimizes ash dust

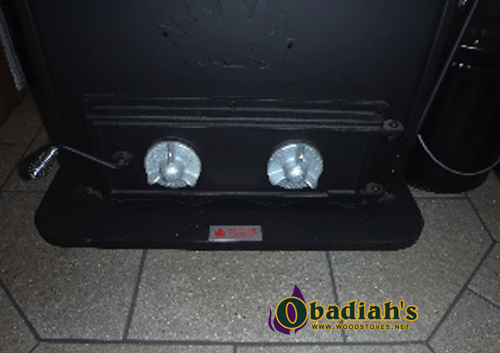

  • Bimetal draft regulator
  • Automatic secondary oxygen
  • Heat from stove adjusted with only one knob on hot air regulator





Options:

  • Available with warming shelf





Specifications DS Stoves DS1600 Circulator Coal Stove
Width 28.5"
Height 36.75"
Depth 30.5"
Fuel Coal
Heating Area Up to 2,500 sq. ft.
Heating Output 125,000 BTU's
Efficiency 83%
Firebox Dimensions 16” x 20”
Firebox Door Dimensions 16" x 10.5"
Firebox Volume 4.1 cu. ft.
Log Length 18"

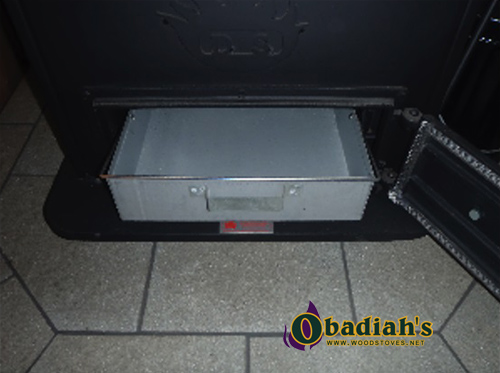

Ash Door Dimensions 16.5" x 5.5"
Flue Size 6”
Weight 648 lbs
Coal Hopper Capacity 50 lbs
Approximate Coal Volume with Hopper 120 lbs
Clearances
Side & Rear 24"
Front 48"
Flue/Stove Pipe 15"
Ceiling 36"

Safety Tested to U.L. #1482, for coal use only.






DS Stoves 1600 Circulator Coal Stove

DS Stoves 1600 Circulator Coal Stove

DS Stoves 1600 Circulator Coal Stove

DS Stoves 1600 Circulator Coal Stove

DS Stoves 1600 Circulator Coal Stove

DS Stoves 1600 Circulator Coal Stove

DS Stoves 1600 Circulator Coal Stove

DS Stoves 1600 Circulator Coal Stove

DS Stoves 1600 Circulator Coal Stove

DS Stoves 1600 Circulator Coal Stove

DS Stoves 1600 Circulator Coal Stove

DS Stoves 1600 Circulator Coal Stove

DS Stoves 1600 Circulator Coal Stove

DS Stoves 1600 Circulator Coal Stove

DS Stoves 1600 Circulator Coal Stove

DS Stoves 1600 Circulator Coal Stove

DS Stoves 1600 Circulator Coal Stove

DS Stoves 1600 Circulator Coal Stove

DS Stoves 1600 Circulator Coal Stove

DS Stoves 1600 Circulator Coal Stove

DS Stoves 1600 Circulator Coal Stove

DS Stoves 1600 Circulator Coal Stove
Product Price
DS Stoves DS1600 Circulator Furnace Call for Pricing
DS Stoves DS1600 Circulator Furnace with Hopper Call for Pricing
Options
DSWS1516 (DS1600 Warming Shelf) Call for Pricing

Please call or email us today for a price quote with shipping.
