Buck Model 91 Stove or Insert EPA 2020

Buck Model 91 Stove or Insert EPA 2020

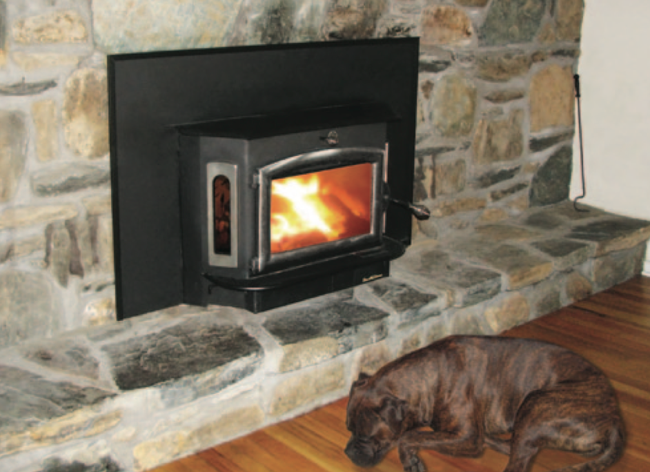

The Buck Model 91 Catalytic Wood Insert used as a masonry fireplace insert or as a freestanding unit easily accepts 23” logs and heats up to 3,200 square feet with an astonishing 62,745 BTU’s per hour. Features include a factory installed blower, high efficiency heat exchanger, ash removal tray and over-sized glass door with air wash system.

*Revised 7/29/20

  • Description
  • Specifications
  • Photos (3)
  • Pricing
  • Videos (8)
  • Add Review

Features:

  • Color: Black, Gold, Pewter
  • Fuel Type: Wood
  • Max BTU Output: 10,400 to 62,745
  • Specific Use: Bedroom Approved
  • Vent Type: Wood Chimney Vent
  • Rated heating capacity of 1800 to 3200 square feet
  • Firebox volume of 4.4 cubic feet
  • Accommodates 22" logs placed front to back or 23" logs placed side to side
  • Features a standard ash pan for easy clean up
  • Heat circulating blower for even room heating
  • Outstanding 86% overall EPA efficiency rating
  • Overall stove weight: 620 pounds
  • Uses 8" diameter stovepipe
  • Catalytic design for lower combustion temperatures and cleaner overall operation
  • Emissions of 1.9 grams per hour





Options

Door Colors Available in: Black, Pewter, and Gold









Insert Models Available with Standard (32"H x 49 1/2"W) and Oversize (35"H x 55 1/2"W) Surrounds

Surround Trim Kit Available in: Black, and Gold









Regular Legs







Large Leg Kit








Free Standing Model available in Pewter, Black, or Gold

Black Pedestal





Resources:
Specifications
Stove Dimensions( W x H x D) 23-3/16" H x 34-1/4"W x 28-7/8"D
Minimum Fireplace Dimensions (W x H x D) 23-1/2"H x 31-3/4"W x 15-1/2"D
Freestanding Clearance to Combustible 16" (Corner) / 23" (Rear) / 24" (Side)
Heating Capacity 1,800 - 3,600 Sq. Feet
BTU output 62,745
Emissions 1.9 g/h
Efficiency 86%
Firebox Volume 4.4 cu ft
Log length 22" (front to back) 23"(side to side)
Ash pan Yes (comes standard)
Blower Yes (comes standard)
Flue Size 8”
Hearth Pad Size 50" W x 54" D
Weight 620 lbs
Mobile Home Approved No
Pre Fab Approved No


Buck Bay Model 91 Catalytic Wood Stove - Black Door Insert
Buck Model 91 Stove or Insert EPA 2020 Buck Bay Model 91 Catalytic Wood Stove - Gold Door Insert
Buck Model 91 Stove or Insert EPA 2020 Buck Bay Model 91 Catalytic Wood Stove - Pewter Door Insert
Buck Model 91 Stove or Insert EPA 2020
Main Unit Price
Buck 91 Catalytic Wood Stove/Insert $2,800
Door Options Price
Black Door Comes Standard
Gold or Pewter Door $265.00
Required Accessories Freestanding Stove Installation
Pedestal 8"H $158.00
Black Legs Regular $150.00
Black Legs Large $171.00
Gold or Pewter Legs Regular $276.00
Gold or Pewter Legs Large $294.00
Required Accessories Insert Installation
Trim Kit Standard (32"H x 49.5"W) $158.00
Trim Kit Overside (35"H x 55.5"W) $248.00
