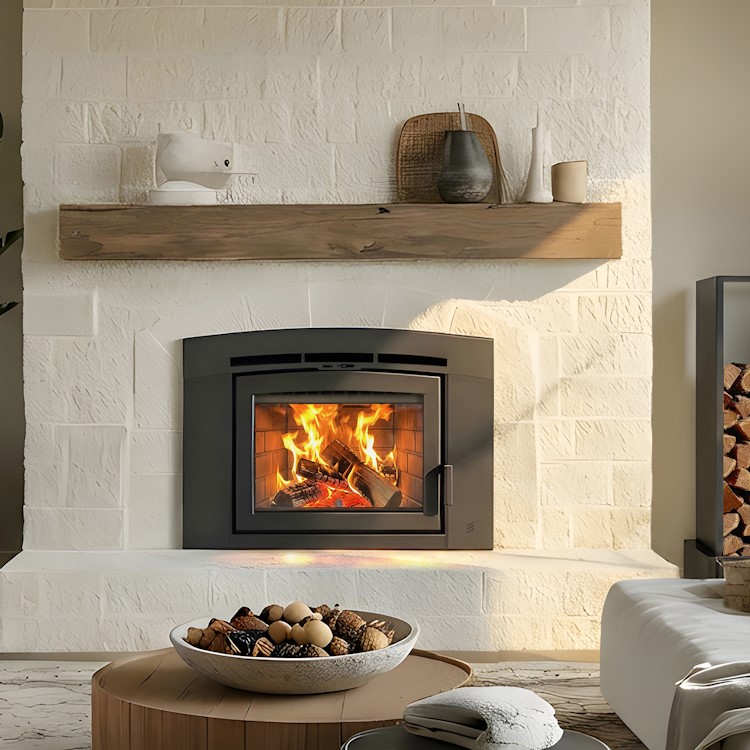

Supreme Lumis 22 Arched Wood Burning Fireplace Insert
Introducing the Supreme Lumis 22 Arched Wood Fireplace Insert, a premium fireplace insert engineered to deliver exceptional performance and refined design. Equipped with a patented automatic air control system, Lumis ensures optimal combustion efficiency and ease of use, adapting airflow to maintain consistent heat output. Its dual blower system enhances thermal distribution, effectively warming spaces with minimal energy loss.
- Description
- Specifications
- Photos (1)
- Pricing
- Add Review
The unit features reversible cast iron panels, offering both durability and aesthetic flexibility, while its innovative baffle design contributes to superior heat retention and cleaner combustion. Designed for discerning homeowners and professionals alike, Lumis represents a sophisticated solution that harmonizes advanced engineering with enduring elegance—setting a new standard in fireplace technology.
Features
| Patented Automatic Air Control | Faceplate Overlay |

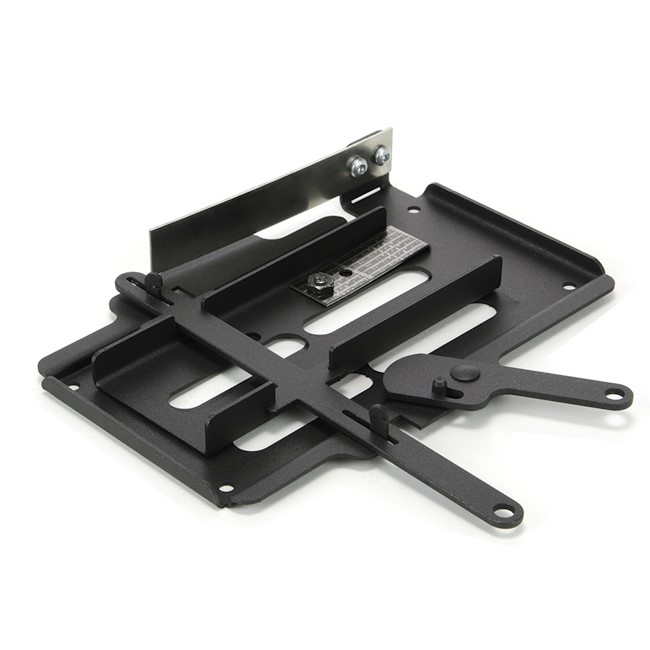

![]() This patented, user-friendly mechanism automatically reduces the amount of combustion air introduced during ignition to the desired burn rate setting. The result is a beautifully consistent fire burning to its full capacity. |

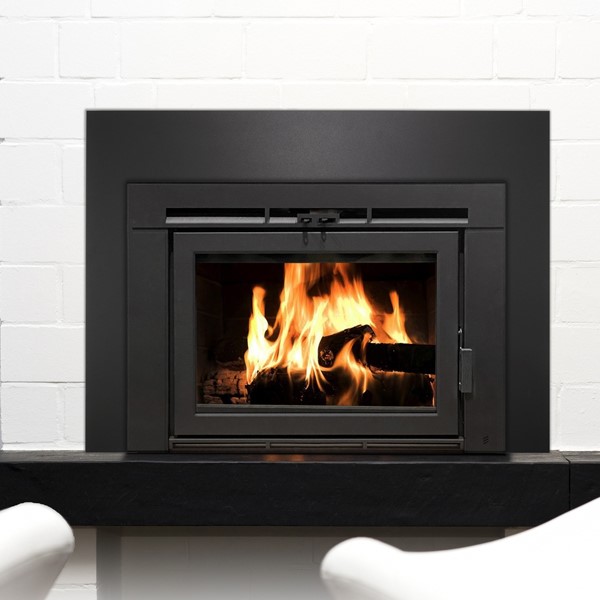

![]() A 12 gauge thick faceplate is offered optionally to aesthetically conceal the opening between the existing masonry fireplace and the surround of the unit. It can easily be trimmed all depending on the installation and the dimensions. |
|
Dual Blower System (180 CFM) |
Reversible Cast-Iron Panels |

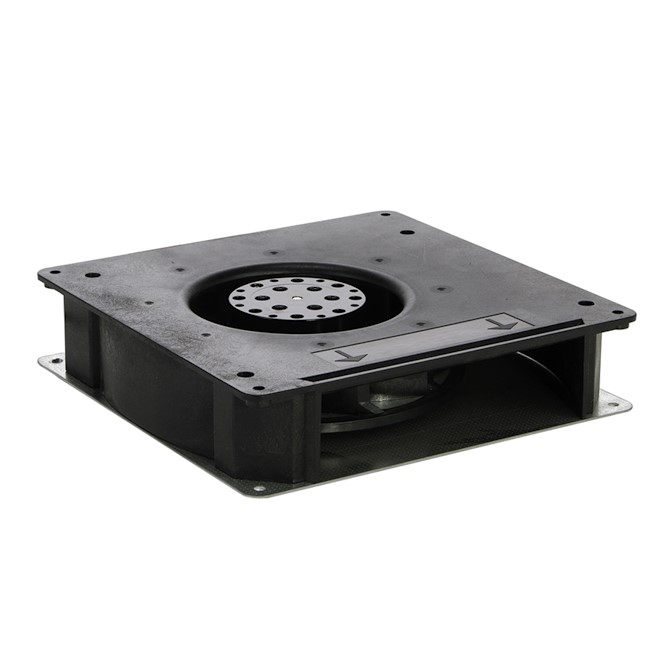

![]() Pre-assembled on the circulating chamber, the blowers help circulate the warm air into the room. As the combustion progresses, the blowers automatically activate with the heat and can be set using the variable speed control. |

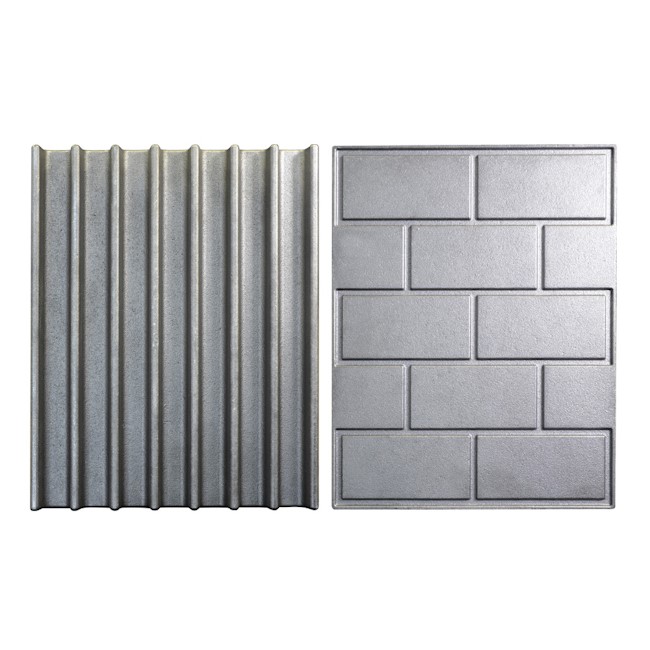

![]() Crafted with care, Supreme's heavy-duty cast iron panels are stamped with a brick pattern on one side and a flowing contemporary design on the other. These reversible panels provide a versatile design that is as beautiful as it is functional. |
|
Chimney Sweeping Cap |
Innovative Baffle Design |

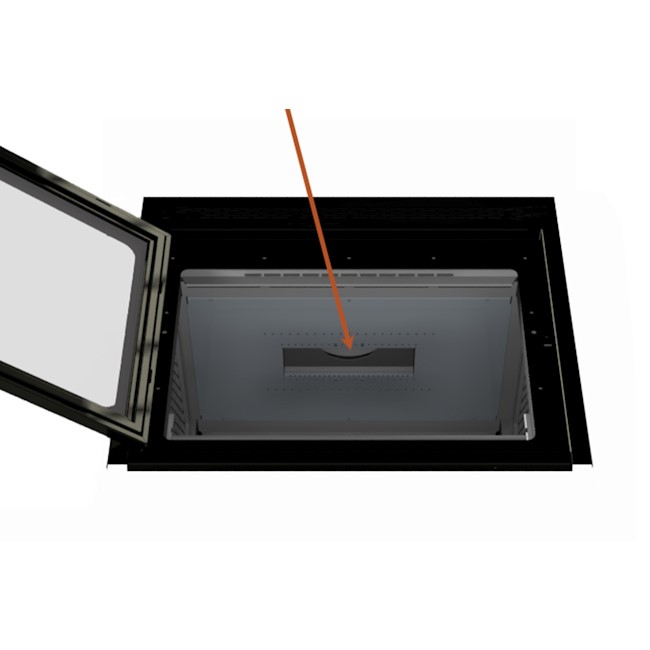

![]() Located on the baffle, this convenient feature allows the chimney to be easily accessed for cleaning, without requiring the removal of any components. |

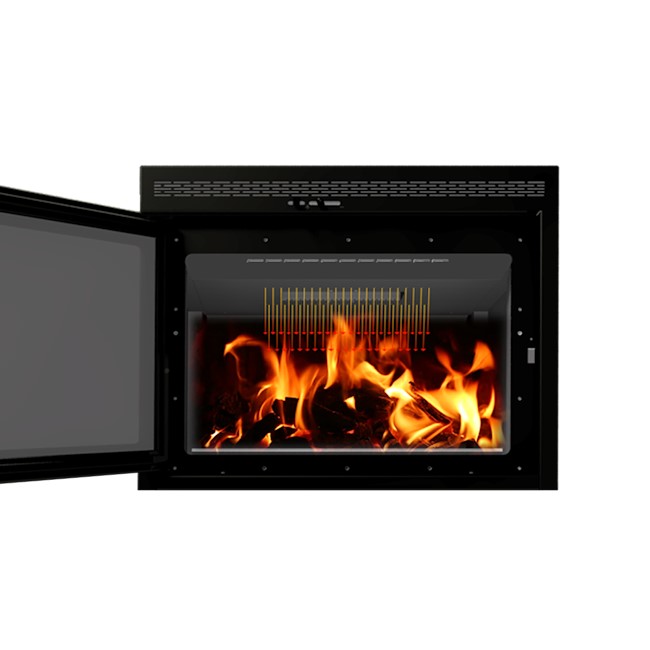

![]() Supreme's products have a unique design that allows secondary air to enter through a perforated baffle offering an unimpeded viewing area to the fire all while increasing the efficiency and prolonging the combustion. |
Resources:
| Specifications | Supreme Lumis 22 |
| Heating Capacity | Up to 1500 sq. ft. |
| Max Heat Output | 75,000 BTU/hr |
| Firebox Volume | 2.2 cu. ft. |
| Max Log Length | 18" |
| Optimum Efficiency | 75% |

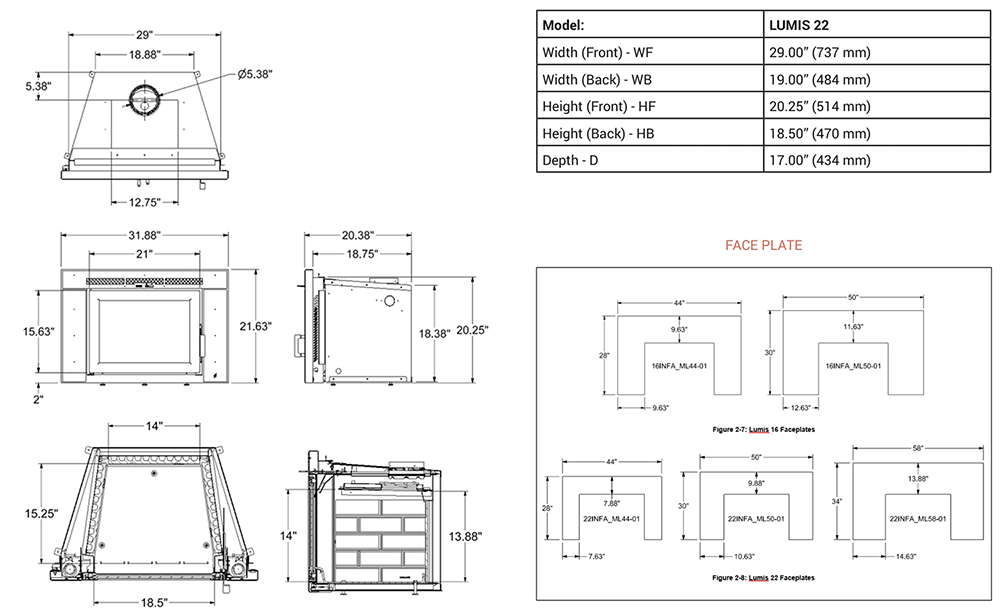

| Overall Dimensions | 20"H x 29"W x 20-3/8"D |
| Minimum Opening Dimensions | 20"H x 29"W x 17"D |
| Glass Dimensions | 17-1/4"W x 12"H |
| Max Burn Time | 6-8 hrs. |
| Flue Size | 5" |
| Minimum Chimney Height | 15' |
| Average Particulate Emissions Rate | 1.3 g/hr |
