PSG Caddy Alterna II - Discontinued

PSG Caddy Alterna II - Discontinued

This product has been discontinued and is no longer available. This page is for informational purposes only.

The Caddy Alterna II from PSG is a 120,000 BTU warm air pellet furnace. With a 240 pound hopper capacity and efficiency topping the 81% mark, it is the perfect heating device for the coldest North American winters.

  • Description
  • Specifications
  • Photos (3)
  • Pricing
  • Add Review

You spoke, they listened, introducing the newly redesigned Caddy Alterna II Pellet Furnace! Answering the call of homeowners looking for the comfort of a wood-heating system without the inconvenience, and tested to the highest standards set by the EPA and CSA B415.1-10. The Caddy Alterna II is available in both pellet unit or a pellet/electric combination unit to fulfill everyone's needs, pleasing even the most discerning folk looking for an Eco-friendly, efficient heating solution.

Thanks to it's 240 lbs hopper capacity, the Caddy Alterna II provides great heating autonomy, and by adding the optional electrical system, it can continue to operate once the pellets have run out. To top that tidbit off, PSG has made certain components maintenance free meaning no need to adjust, calibrate, or oil, and a self-diagnostics electronic interface prevents unnecessary service calls. And of course you can't forget the the self-cleaning bottom feeder that keeps the burn pot free of deposits.

Let the Caddy Alterna II show you what the definition of unmatched reliability means, with every component carefully selected and sourced from reputable vendors. With an all stainless steel combustion chamber and burn pot, the heart of your Caddy Alterna II is guaranteed to last. Never be dependent on a single source of energy to bring comfort and safety to your family again.





Features

  • The Alterna can use : standard wood pellets, sawdust / hay mix pellets, 100% bark pellets, or switch grass pellets
  • Input capacity: 101,000 BTU (29.6 kW)
  • Loading capacity: up to 240 lbs
  • Efficiency : 82.4%
  • Exhaust pipe diameter: 4"
  • Furnace exterior dimensions: 49 1/2” X 29 3/8” X 57 5/8”
  • Hot air plenum dimensions: 22"W x 22"D
  • Air return plenum – dimensions (Depth or Height X Width) 16” X 21 1/4”
  • G-10 blower with 1/2 hp motor - theoretical 1650 CFM
  • Qualifies for the USA tax credit (USA only)







Options

Air Diffuser

Auxiliary Discharge System

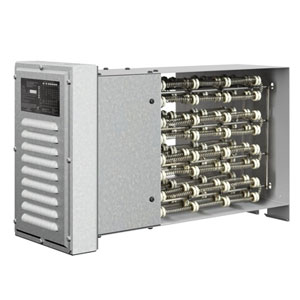

Electric Element

Fresh Air Intake Kit

Hot Water Loop Kit

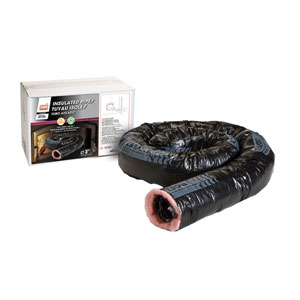

Insulated Flex Pipe for Fresh Air Intake Kit

Leg Assembly for Discharge Tank

Orifice for Evaporator Coil

Stand Alone Auxiliary Discharge Tank

Storage Tank Extension

Storages Tank w/ Pneumatic

Self Feeding Pellet System

TX Valve for Evaporator Coil

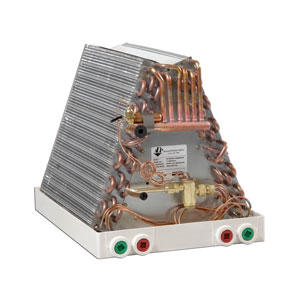

Uncased Air Conditioning Coil







Old Style Model



 ....................


Resources:
Appliance Performance
Type of Fuel Pellet
Firebox Volume 3.6 cu. ft.
Max Burn Time 200 hrs.
Hating Area 1,000 - 2,500 sq ft
Overall Heat Output Rate 25,216 BTU/h - 72,447 BTU/h (7.4 kW - 21.2 kW)
Max Heat Input Rate 101,000 BTU/hr (29.6 kW)
Average Overall Efficiency 67.9% (HHV) 73.2% (LHV)
Delivered Heat Output Rate 22,537 BTU/h - 64,737 BTU/h (6.6 kW - 19 kW)
Average Delivered Efficiency 60.5% (HHV) 65% (LHV)
Optimum Efficiency 82.4%
Burn Rate 1.2 lb/hr - 11.8 lb/hr
Average Electrical Power Consumption 860 Wh
General Features
Chimney Diameter 4"
Flue Outlet Diameter 4"
Baffle Type Stainless Steel
Weight 573 lbs (260 kg)
Blower 1/2 HP 4 speed Direct drive 1,650 CFM
Filters - Dimensions (W x H x D) 16” X 20” X 1”
Air Return Plenum - Dimensions (Depth or Height) 16"
Air Return Plenum - Dimensions (Width) 21 1/4"
Hot Air Plenum - Dimensions (Depth or Height) 22"
Hot Air Plenum - Dimensions (Width) 22"
Overall Dimensions (W x D x H) 49 1/2” X 29 3/8” X 57 5/8”
Door Opening Dimensions (H x W) 10" x 13 3/4"
Glass Surface Dimensions (W x H) 3" x 16"
Door Type Single, Glass w/ Cast-Iron Frame
Glass Type Ceramic Glass
Center line of Flue outlet to the Side 13 1/2"
Center line of Flue outlet to the Floor 26 3/4"
Electric Element - Location Left or Right
Electric Element - Recommended (Max Output) 15 kW
Electric Element - Other Optional(Max Output) 20 kW
Water Loop Kit - Connecton Location Left or Right
Water Loop Kit - Connecting Pipe Diameter 3/4"
Water Loop Kit - Back-up Tank Volume 60 Gal (227L)
USA & Canadian Standard Emissions EPA / CSA B415.1-10
USA Safety Standards UL 391, UL 1995
Canadian Safety Standards CSA B366.1, CSA C22.2 no. 236
Warranty Limited Lifetime
Clearance to Combustibles
Front Clearance 48"
Back Wall Clearance 24"
Side Wall Clearance 4"
Opposite Side Wall Clearance 24"
Recommended clearance for Maintenance on option side 24"
Ducts Clearance <5’=2” ; >5’=0”

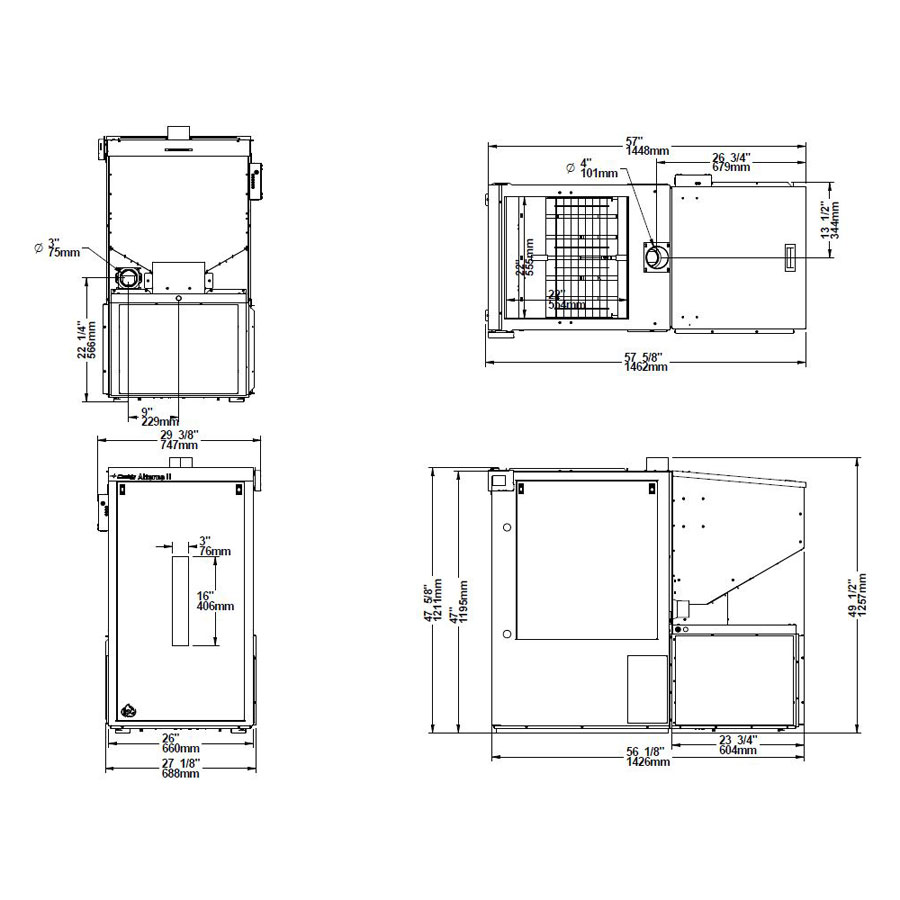

Diagram for PSG Caddy Alterna II (PF09010)

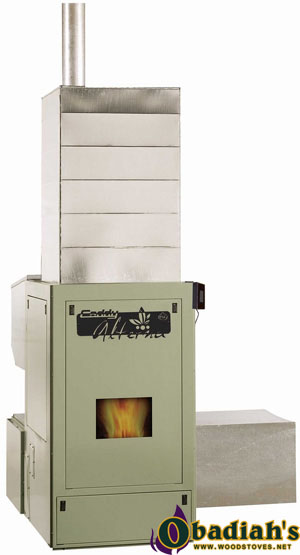

PSG Caddy Alterna II Pellet Furnace - Front
PSG Caddy Alterna II - Discontinued

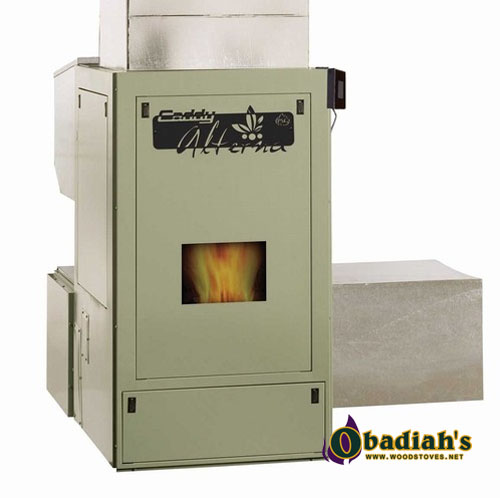

PSG Caddy Alterna II Pellet Furnace - Facing Right
PSG Caddy Alterna II - Discontinued

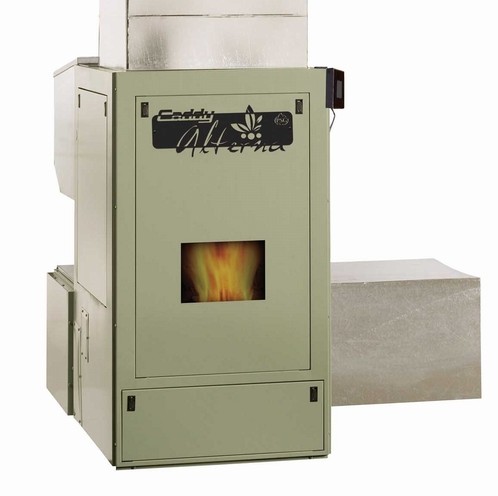

PSG Caddy Alterna II Pellet Furnace - Facing Left
PSG Caddy Alterna II - Discontinued

Please call or email us for information regarding PSG products.  Specify the model you are interested in and your zip code.
