Pioneer Princess Wood Cookstove

Pioneer Princess Cookstove

The Pioneer Princess has the same basic design as the Pioneer Maid Wood-burning Cookstove, but with an added front load firebox door and thermostat control, as well as many more friendly features.  She cooks and bakes like a Pioneer Maid, but she's a Princess!

  • Need Replacement Parts? Check out our full parts list for Pioneer Cookstoves, Click Here.

Click on the tabs below for useful information, pictures and more!

Interested in using this stove to heat Domestic Hot Water? Check out the Vaughn Range Boiler for more information on setting up a Domestic Hot Water system.


  • Description
  • Specifications
  • Photos (7)
  • Pricing
  • Extended Info
  • Videos (4)
  • Reviews (1)
  • Add Review

Features

  • Handmade by Amish Craftsmen
  • Black Porcelain Exterior Finish
  • Front or Top Loading Firebox
  • Front Ash Door for Easy Ash Removal
  • Back Panel and Shelf are Standard
  • Thermostat Controlled
  • Shaker Grates
  • Large Firebox Perfect for Overnight Burns
  • Storage Shelf and Backsplash Panel
  • Wooden Knobs and Handles
  • Quality liners
  • Spacious Oven with Spring Load Door Heats Quickly
  • Oven Holds 8 Loaves of Bread
  • Auxiliary Turbo Draft for Easier Fire Starting
  • Smooth Steel Cook Top
  • Two Large 11" Lids
  • Tightly Welded Steel Construction
  • Stainless Steel Trim
  • Downdraft Efficiency
  • Refractory Fire Brick for More even Heating and Efficiency
  • Safety Tested to UL / ULC Standards
  • Washington State Approved (learn more here)



Thermostat Control Features

  • More Even Heat
  • Helps Prevent Overheating
  • Helps Maintain Firebed overnight

Options

  • Flame View Glass Firebox Door
  • Warming Closet
  • Water Coil - Single or Double
  • Water Reservoir Side - Built on
  • Water Reservoir Rear - Attaches to the rear of the stove
  • Stainless Steel Cook Top
  • Black Trim for Front Ledge and Rail
  • Summer Grate

Parts & Accessories

Rear water reservoir

Single or double water coils

Summer grate

UL Thermostat

UL Thermostat

Shelf Posts

Shelf Posts

Knob Kit

Oven Thermometer

Oven Handle

Oven Door Spring

Flue Adaptor

Closet Posts

Auto-Thermostat

Auto Thermostat Rod/Coil

Ash Pan

Ash Pan

Fire Door Handle

Ash Pan Handle w/Latch

Ash Door Handle

Ash Door Handle Latch

More parts and accessories!



The Pioneer Princess uses the efficient downdraft to burn. Our accessory draft allows you to temporarily introduce air below the grates making it easier to start on cold mornings.

This stove is not mobile home approved nor EPA approved. Cookstoves are nationally exempt from EPA regulations. Learn more about EPA exemptions here.


Resources:
Pioneer Princess With Reservoir Without Reservoir
Fuel Wood Wood
Overall Dimensions 54" L x 28-1/2" W x 53-1/2" H 45" L x 28-1/2" W x 51-1/2" H
Cooking Surface 52" L x 22-1/2" W x 32-1/2" H 43" L x 22-1/2" W x 32-1/2" H
Oven Dimensions 19-1/2" W x 13" H x 22" D 19-1/2" W x 13" H x 22" D
Firebox Dimensions 18-1/2" L x 13-1/2" W x 18-1/2" D 18-1/2" L x 13-1/2" W x 18-1/2" D
Door Opening 11-1/8"W x 11-1/8"H 11-1/8"W x 11-1/8"H
Flue Size 7" Round 7" Round
Flue Location Rear Rear
Weight 700 lbs 650 lbs
Approximate Area Heated 2000 sq.ft 2000 sq.ft
Water Reservoir (Optional Accessory Sold Separately)
Side Reservoir 9 gal
Rear Reservoir 15 gal
Clearances to Combustibles
Front 48" 48"
Rear 25" 25"
Left Side 25" 25"
Right Side 18" 18"

Be sure to visit our Cookstove Community website cookstoves.net; the best place online to connect with other cookstove users over stoves, self-sufficient living, alternative energy and more! Take a look at our selection of videos, articles and photo. Also, be sure to visit the forums to talk to like-minded folks from all over.

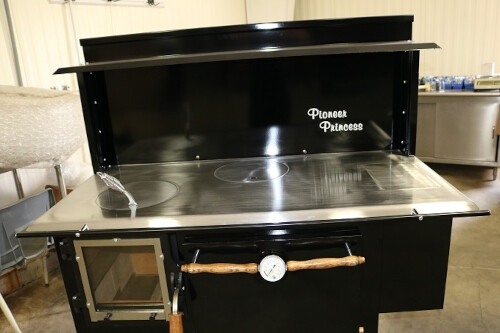

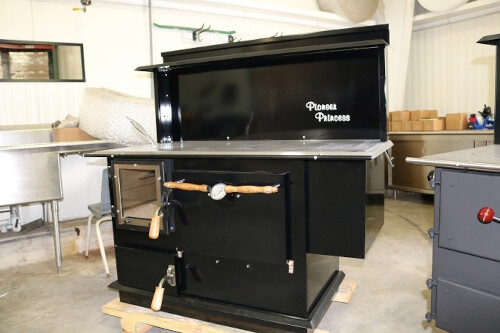

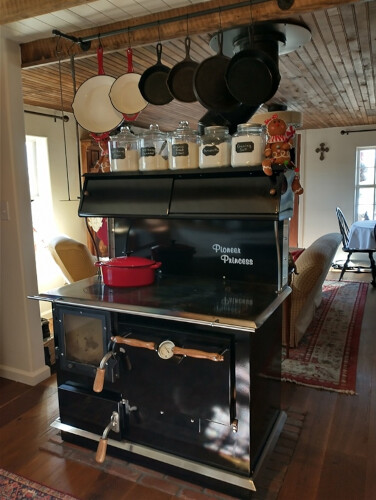

Pioneer Princess with Side Water Reservoir and Standard Shelf
Pioneer Princess Cookstove

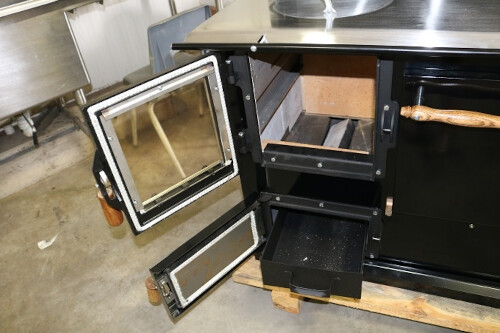

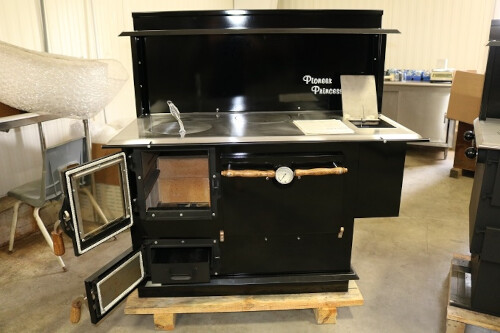

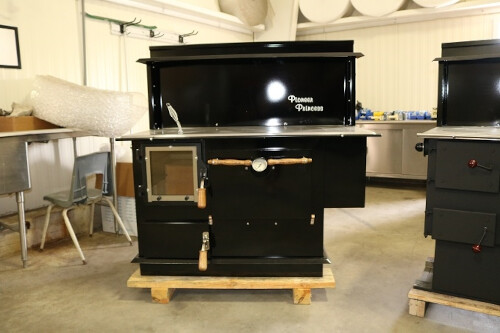

Pioneer Princess with Glass Door
Pioneer Princess Flame View

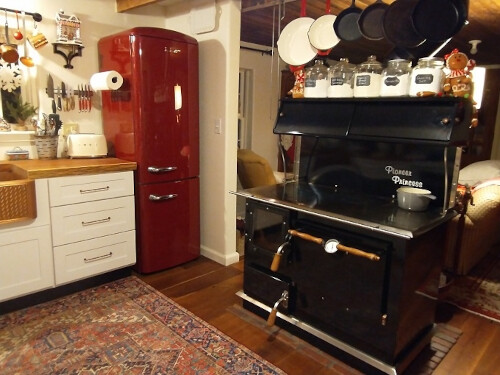

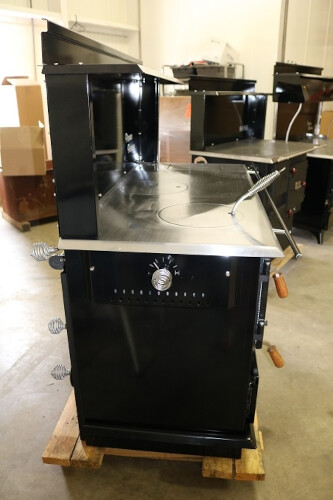

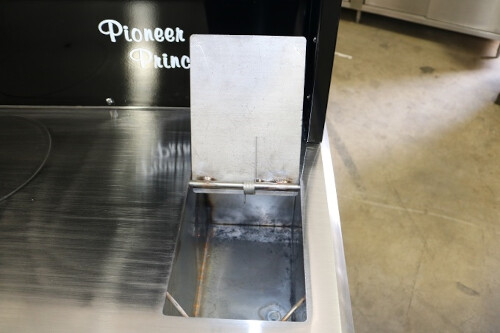

Pioneer Princess with Side Water Reservoir
Pioneer Princess

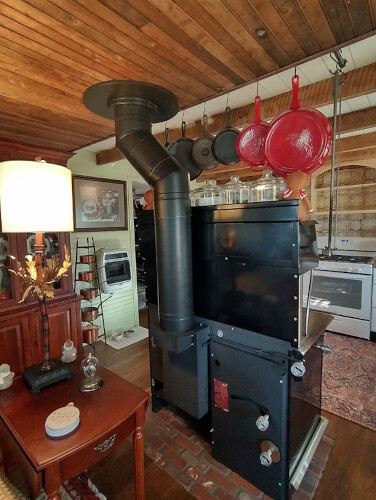

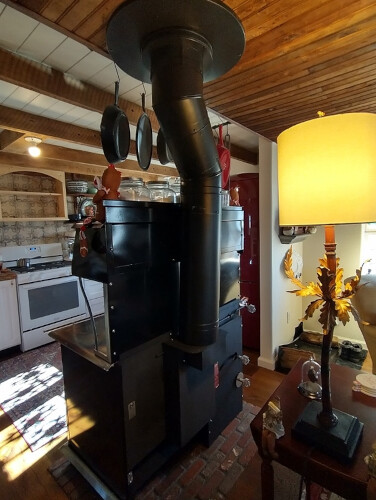

Pioneer Princess Rear View with Side Reservoir
Pioneer Princess

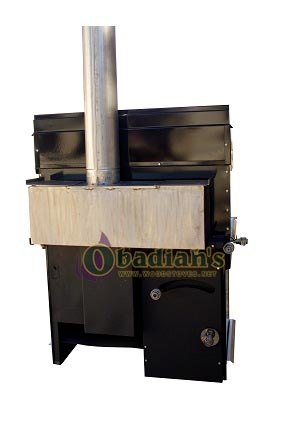

Pioneer Princess Rear View with Rear Water Reservoir
Pioneer Princess
Pioneer Princess Rear Damper
Pioneer Princess Cookstove

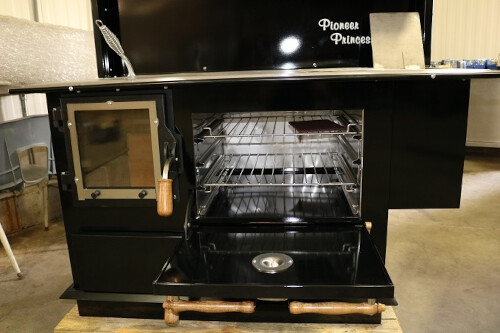

Pioneer Princess Oven Hinge
Pioneer Princess Cookstove
Main Unit Price
Pioneer Princess with Shelf and Backsplash Panel $3,082**
Side Reservoir (9 gallons) $280**
Rear Reservoir (15 gallons) $609**
Warming Closet with Glass Doors (8" H x 11" D) $315
Stainless Steel Cook Top $300
Stainless Water Coil - Single* (non-UL) $80
Stainless Water Coil - Double* (non-UL) $200
Summer Grate $130
Flame View Firebox Glass Door (Available in Nickel or Black Trim) $310
Black Trim (for ledge and front rail) $70
Stainless Steel Closet posts for Standard Shelf $84

*The hot water coil and the flame view door's are not a UL/ULC approved attachment.

** Shipping is included.  Click here to see Obadiah's Shipping Terms.

Be sure to check out our newly improved Cookstove Community website cookstoves.net; the best place online to connect with other cookstove users over stoves, self-sufficient living, alternative energy, and more! Take a look at our selection of videos, articles, and photos, and be sure to visit the forums to connect with like-minded folks from all over.

If you are planning to cook with a cookstove, you will need to understand some basic fire safety. Remember, extinguishing a grease or oil fire with water is not a good idea.

Stove Delivery and What To Look For

Boss of the Swamp: Woodstove & Chimney Maintenance (Part 1)

Boss of the Swamp: Woodstove & Chimney Maintenance (Part 2)

Wood Stoves with Domestic Hot Water View Review



new to wood cook stoves
April 18, 2016
Reviewer: Pam
We are thrilled with our new Pioneer Princess. Had it professionally installed to ensure safety, and was very pleased with the performance. Baked biscuits and a cake on only the first full fledged heating of the stove..with success. We found no hot spots in the oven, and it bakes better then my propane Jenn Aire. Very easy to learn to maintain correct temperatures. This Princess heats so well, that I dare not use it in weather that is more then 50 degrees outside- we will melt. We have a large, new home and had this installed in the basement for back up and it quickly heats the next two floors. We will use it in the fall and in the spring instead of outdoor wood boiler. This stove is amazing! We are first time wood cookstove users/owners and we are very happy with this stove and the price. Professional installers (who sell wood stoves) were impressed with its construction & the appearance!
