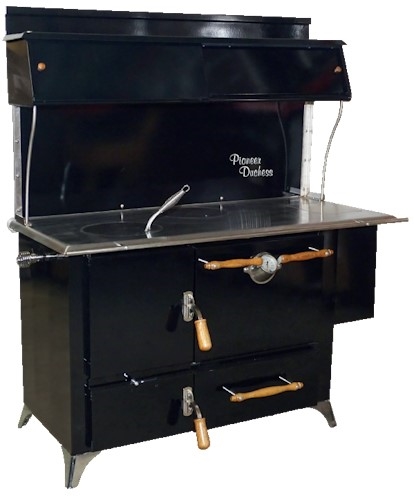

Pioneer Duchess Wood Cookstove
The Pioneer Duchess is the newest cookstove in the Pioneer line, with several new features designed to improve the overall cookstove experience. The most obvious difference is the legs. By lifting it off the floor, you can reach completely underneath for easy cleaning, also an adjustable leg is provided to eliminate rocking on uneven floors. In the extra space below the oven, Pioneer has added a storage drawer and enlarged the door panels to eliminate the need for a front porcelain panel.
- Description
- Specifications
- Photos (7)
- Pricing
- Extended Info
- Videos (2)
- Add Review
An air louver system in the ash door that’s controlled by a lever extending out of the top has been added to replace the auxiliary draft used on the Princess.
The thermostat’s bimetal coil spring is placed in the oven to provide an exact oven temperature response.
The oven door has a broil stop that will hold the door open 2” by itself. It also can be removed by a screwdriver holding the spring arm then lifting it off with your hands.
The left and right porcelain panels spaced away from the stove wall 5/8”. This allows natural convection to occur as air in the space heats up and rises pulling cooler air in from off the floor.
Amish Built and Handcrafted In The USA
Interested in using this stove to heat Domestic Hot Water? Check out the Vaughn Range Boiler for more information on setting up a Domestic Hot Water system.
- The Duchess has the same basic overall dimensions and specs as the Princess,
- The Pioneer Duchess is UL-C listed.
Features
- Front loading door
- Back Panel and Shelf are Standard items

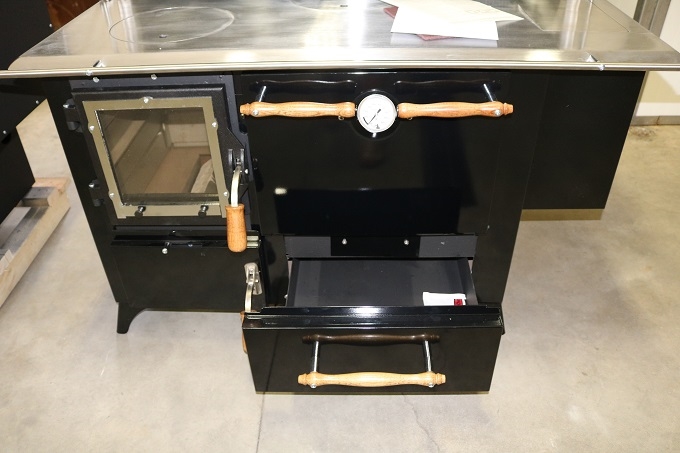

- Storage Drawer
- Air Louver
- Front ash door
- Thermostatic Control
- Oven Thermostat
- Shaker Grates
- Removable Broil Stop
- Spaced Porcelain Panels
- More even heat
- 2 Oven Racks
- Firebox Lined with Stainless Steel Bricks*
- UL Listed
*Refractory Bricks available if specified
The side water reservoir must be ordered at the time of stove purchase.
The rear water reservoir can be ordered at the time of stove purchase, or added later.
This stove is hand made by the Amish.
Note: There is no warranty on bricks, please be aware that throwing wood into the firebox can cause damage
Resources:
| Pioneer Duchess | With Reservoir | Without Reservoir |
| Fuel | Wood | Wood |
| Overall Dimensions | 54" L x 28-1/2" W x 53-1/2" H | 45" L x 28-1/2" W x 51-1/2" H |
| Cooking Surface | 52" L x 22-1/2" W x 32-1/2" H | 43" L x 22-1/2" W x 32-1/2" H |
| Oven Dimensions | 19-1/2" W x 13" H x 22" D | 19-1/2" W x 13" H x 22" D |
| Firebox Dimensions | 18-1/2" L x 13-1/2" W x 18-1/2" D | 18-1/2" L x 13-1/2" W x 18-1/2" D |
| Door Opening | 11-1/8"W x 11-1/8"H | 11-1/8"W x 11-1/8"H |
| Stovetop to Bottom of Shelf or Warming Closet | 17.5" (Side Reservoir Only) | 15" |
| Flue Size | 7" Round | 7" Round |
| Flue Collar Height from Floor | 32" | 32" |
| Flue Location | Rear | Rear |
| Minimum Chimney Height | 12' | 12' |
| Weight | 700 lbs | 650 lbs |
| Approximate Area Heated | 2000 sq. ft. | 2000 sq. ft. |
| Water Reservoir (Optional) | ||
| Side Reservoir | 9 Gallon | |
| Rear Reservoir | 15 Gallon | |
| Clearances to Combustibles | With Insulated Heat Shield UL-C Model | With Insulated Heat Shield UL-C Model |
| Front | 24" | 24" |
| Front Floor Protection | 16" / R-Value: 1.0 | 16" / R-Value: 1.0 |
| Rear of Cookstove | 18" | 18" |
| Flue Pipe on Stove to Back Wall | 11.5" | 11.5" |
| Left Side (Firebox) | 12.5" | 12.5" |
| Right Side (Oven) | 9" | 9" |
Be sure to check out our newly improved Cookstove Community website cookstoves.net; the best place online to connect with other cookstove users over stoves, self-sufficient living, alternative energy, and more! Take a look at our selection of videos, articles, and photos, and be sure to visit the forums to connect with like-minded folks from all over.
If you are planning to cook with a cookstove, you will need to understand some basic fire safety. Remember, extinguishing a grease or oil fire with water is not a good idea.
