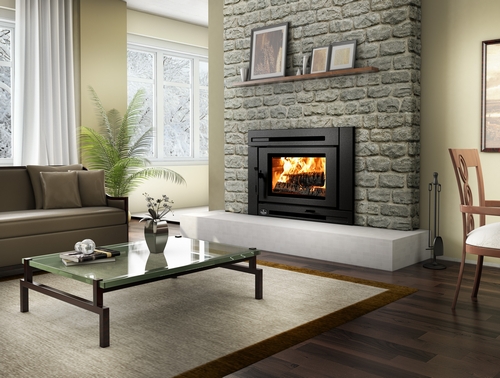

Osburn Matrix Wood Insert

Osburn Matrix Wood Insert

This appliance looks like a fireplace, but has all the advantages of an insert. This beautiful insert with it's unique massive and sleek design, has been making improvements through the years and is happy to introduce the latest version of the Osburn Matrix Insert.

  • Description
  • Specifications
  • Photos (4)
  • Pricing
  • Videos (5)
  • Add Review

This beautiful insert with it's unique massive and sleek design has been making improvements through the years and is happy to introduce the latest version of the Osburn Matrix Insert. This appliance looks like a fireplace but has all the advantages of an insert. The Matrix wood insert defines the new standards for contemporary look and performance. These changes have been made with industry standards of the future in mind. Some of the changes include more functionality to the door and an impressively small 1.54g/hr average particle emissions rate. It's faceplate and blower assembly were developed to allow a flush finish with the masonry fireplace. Cast iron was selected as the material of choice for this clean and modern unit. Installation into larger openings is facilitated by the use of an optional sheet metal backing plate. This insert will surely become the focal point of the room. It has a firebox measuring 2.4 cu. ft, creating up to 75,000 BTU/hr. for up to 8 hours! Designed to heat between 500 - 2,100 sq. ft of living space with up to 77% efficiency rate, the Osburn Matrix is the perfect center-piece for your home for years to come.





Features

  • 75,000 BTU/hr
  • Recommended Heating Area: 750 - 2,100 sq. ft.
  • 2.4 cubic foot firebox
  • Log length up to 20"
  • Self-cleaning air-wash glass system
  • 130 CFM blower included
  • Optimum efficiency: 77.2%
  • May qualify for USA tax credits (USA only)
  • Tested and/or listed by Intertek as per applicable standards CSA/UL/ULC and/or others



Options

Faceplate Backing Kit
(Available in 44" and 50")


Bottom Faceplate Backing Kit

(Available in 44" or 50")

Fresh Air Intake Kit - Oval

Projection Kit for insert (2"or4")

Offset Liner Adapter

Fire Screen

Fresh Air Intake Register
w/ Airtight Damper


Resources:
Specifications Matrix Wood Burning Insert
Firebox Depth 16-1/2" Depth
Firebox Width 21"
Firebox Height 12"
Maximum Log Length 21"
Door Opening Width 17-1/2"
Door Opening Height 8-3/4"
Type of Door Single, glass with cast iron frame
Glass Surface Area 11-7/8" x 19-5/8"
Steel thickness (body) 3/16"
Weight 484 lb (220 kg)
Firebox Volume 2.4 cubic feet
Minimum fireplace opening 28-7/8" (Width)
Minimum fireplace opening 23-3/4" (Height)
Minimum fireplace opening 19-5/8" (Depth)
Glass Type Ceramic glass
Depth - Overall 23 1/8"
Height - Overall 25 1/8"
Width - Overall 36-1/8"
Center line of flue outlet to the back 5 5/8"
Center line of flue outlet to the side 13 1/2"
Canadian Standard (emissions) CSA B415.1-10
USA standard (emissions) EPA Method 28 (40 CFR Part 60)
Canadian Standard (safety) ULC-S628
USA standard (safety) UL-1482, UL-737
Maximum output - EPA test wood 32,200 BTU
Maximum output - seasoned cord wood 75,000 BTU
Type of Fuel Wood
Minimum chimney height 12'
Log positioning Over width
Recommended Heating Area 750 - 2,100 sq. ft.
Steel thickness (top) 5/16"
Optimum efficiency 77.2%
Emissions 3.89 grams/hour
Recommended chimney diameter 6"
Baffle High heat-resistant C-cast
Warranty Limited Lifetime
Tested and/or listed as per applicable standards by Intertek
Minimum clearances to combustibles * (Data expressed in inches. 1 inch = 25.4 mm)
Combustible side mantle to unit 12"
Combustible side wall to unit 16"
Combustible top mantle to unit 20"
Combustible shelf to unit 22"
Minimum floor protection in front of unit Canada: 18" / USA: 16"
Projection in the room minimum / maximum 2" / 4"
Floor 18"

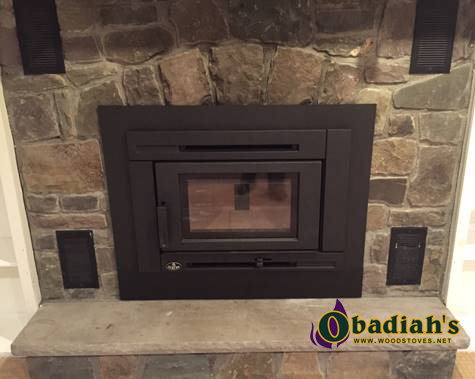

Osburn-Matrix-Medium-Trim
Osburn Matrix Wood Insert
Osburn-Matrix-No-Trim-Dark
Osburn Matrix Wood Insert
Osburn-Matrix-Projection-Trim
Osburn Matrix Wood Insert
Osburn-Matrix-Regular-Trim
Osburn Matrix Wood Insert
Osburn Matrix Wood Insert Price
OB02021 - Insert with Cast Front without added Options $2,699
OPTIONS
29" x 44" Faceplate Backing Plate Kit $110
29" x 50" Faceplate Backing Plate Kit $160
44" x 6" Bottom Faceplate Backing Plate $60
50" x 6" Bottom Faceplate Backing Plate $70
Insert Projection Kit: 2" or 4" $100
Fire Screen $145
Fresh Air Kit - Oval 5" Diameter $59
Fresh Air Intake Register w/ Airtight Damper - 5" Diameter $140
Offset Liner Adapter $220

All Retail Prices Include: Residential, curbside delivery via freight truck with a lift gate is included for shipping in the Continental U.S.A. (some exceptions may apply). Please inquire with our sales staff if you have specific shipping needs such as international, freight terminal and/or business deliveries or if you need a smaller truck size. Click here to see Obadiah's Shipping Terms.

Obadiah's offer's a 20% discount and free shipping on most complete chimney systems. Email our chimney specialists for an exact quote.
