Napoleon EPI3 Cast Iron Wood Burning Insert

Napoleon EPI3 Cast Iron Wood Burning Insert

Napoleon® adds to their wood burning collection with the new EPI3T & EPI3C EPA wood burning inserts. The EPI3T has a traditional flush front with a cast iron surround and the EPI3C has a contemporary flush front with a cast iron surround. The EPI3’s give customers the option of a wood burning insert that will match any décor, whether it be traditional or contemporary.

Four stainless steel secondary air tubes supercharge the fuel burning process and generate a beautiful display of YELLOW DANCING FLAMES®. Complete with a removable painted black log retainer and a heat circulating blower; the EPI3T, EPI3TN & EPI3C are perfect heating solutions for your home or cottage.

  • Description
  • Specifications
  • Photos (10)
  • Pricing
  • Videos (5)
  • Add Review

What do you do with your existing inefficient masonry fireplace? Retrofit an efficient Napoleon Woodburning Insert! Through easy operation, you achieve clean burning fires and radiating luxurious heat with minimal amount of work and wood, saving you precious time and money!  Napoleon® adds to their wood burning collection with the new EPI3T & EPI3C EPA wood burning inserts. The EPI3T has a traditional flush front with a cast iron surround and the EPI3C has a contemporary flush front with a cast iron surround. The EPI3’s give customers the option of a wood burning insert that will match any décor, whether it be traditional or contemporary.  All models come complete with Cast Iron Door and Surround and Variable Speed Blower.

PRODUCT FEATURES

  • Up to 55,000 BTU’s and heats up to 1,500 sq. ft.
  • EPA certified to be one of the cleanest burning wood inserts available
  • Largest ceramic glass viewing area in the industry, 300 sq. in.
  • EPI3C available in painted metallic black finishes
  • EPI3T available in porcelain enamel Majolica brown and painted metallic black finishes
  • Full refractory lined firebox
  • Airwash system keeps the viewing glass clean
  • Rear rollers and oversized levelling screws make the EPI3T & EPI3C easy to install
  • Removable painted metallic black log retainer for easy cleaning
  • Removable one piece high density vermiculite baffle allows easy access for chimney cleaning and maintenance
  • Safety door switch and heat activated thermal switch for reliable carefree blower performance
  • 6″ flue collar is detachable from outside or inside the firebox and adjustable to a 30° offset
PRODUCT SPECIFICATIONS Model EPI3T & EPI3C
BTU’s (Output) 55,000
Firebox Capacity (cu. ft.) 1.8
Area Heated (sq. ft.) 1,500
Flue Diameter 6″
Mobile Home Approved No
Blower Kit Available Yes (Standard)
Burn Time (Hours) 8
Catalytic Combuster No
Log Size 18"
Emissions (Grams per Hour) 2.6

Certified under U.S. Environmental Protection Agency (E.P.A.) July 1990 40 C.F.R. Part 60 and the Oregon Department of Environmental Quality (D.E.Q.) particulate emission standards by E.E.M.C these appliances have been tested and listed by Omni testing services to standards: ULC-S628, UL1482. Figures may vary with individual conditions such as floor plan layout, insulation value/heat loss of the house and geographical location.



EPI3T (Traditional - Black)
Napoleon EPI3 Cast Iron Wood Burning Insert
EPI3T (Traditional - Black)
Napoleon EPI3 Cast Iron Wood Burning Insert
EPI3TN (Traditional - Majolica Brown)
Napoleon EPI3 Cast Iron Wood Burning Insert

Napoleon EPI3 Cast Iron Wood Burning Insert

Napoleon EPI3 Cast Iron Wood Burning Insert
EPI3T (Traditional - Black)
Napoleon EPI3 Cast Iron Wood Burning Insert
EPI3TN (Traditional - Majolica Brown)
Napoleon EPI3 Cast Iron Wood Burning Insert
6" Flue Collar
Napoleon EPI3 Cast Iron Wood Burning Insert
Removable Log Retainer
Napoleon EPI3 Cast Iron Wood Burning Insert

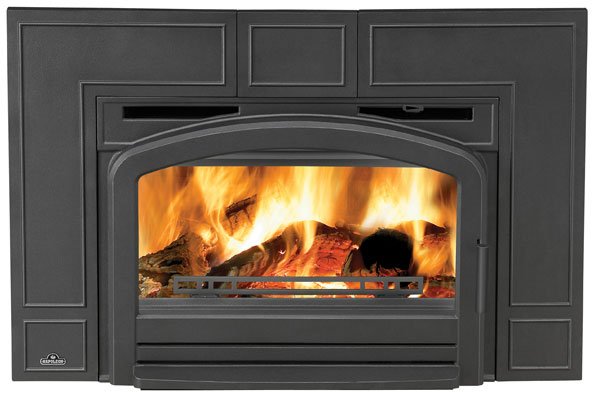

EPI3C (Contemporary - Black)
Napoleon EPI3 Cast Iron Wood Burning Insert
Model Number Price
EPI3C (Contemporary Painted Black) $2,999.00
EPI3T (Traditional Painted Black) $2,999.00
EPI3TN (Traditional in Majolica Brown Porcelain Enamel) $2,999.00
Options / Accessories Price
Backer Plate (for placement between Surround and Wall) $69
