J.A. Roby Magellan LX Wood Stove

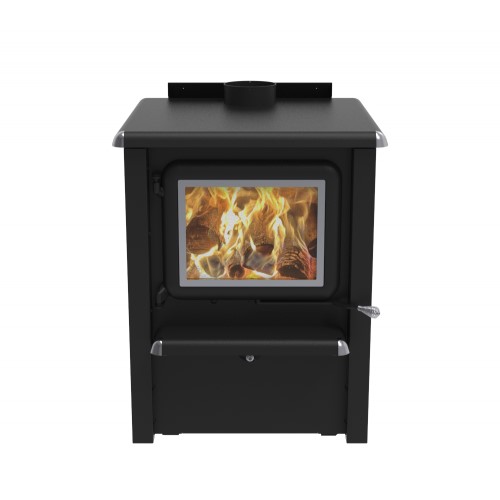

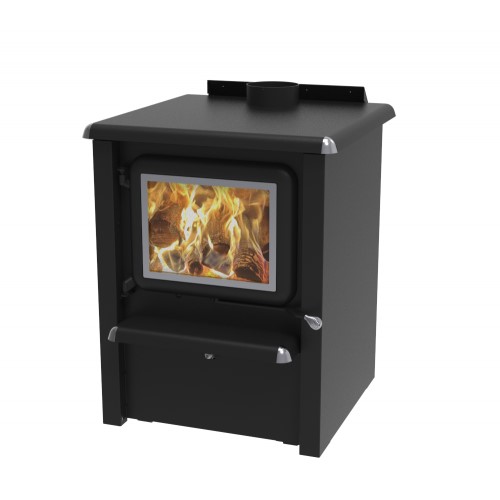

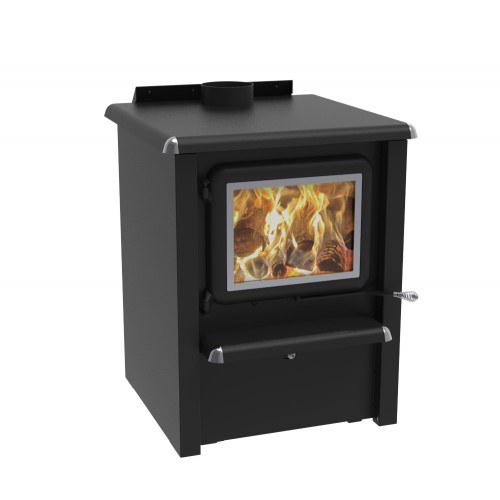

J.A. Roby Magellan LX Wood Stove

The J.A. Roby Magellan LX Wood Stove features a high-efficiency wood firebox capable of outputting 100,000 BTUs. With its modest footprint and sleek, contemporary design, this stove fits well with any modern décor. Additionally, the Magellan LX is mobile home approved with the addition of the optional Outside Air Kit.

  • Description
  • Specifications
  • Photos (3)
  • Pricing
  • Add Review

Features

  • The J.A. Roby Magellan LX Wood Stove heats between 1000 - 3000 sq. ft.
  • Chrome Handles, Corners, and Door Trim
  • Square Door
  • Maximum 100,000 BTUs/hr Output
  • 77.75% Efficiency
  • Weight: 370 lbs.
  • Standard 6” Chimney Connection
  • Max Log Length 22"
  • Stainless Steel Secondary Air System for Improved Gas Combustion
  • Top Vent Flue
  • Outside Air Intake
  • Mobile Home Approved
  • Optional Blower Kit
  • UL Certified
  • EPA Approved
  • Limited Lifetime Warranty

Resources:
Specifications J.A. Roby Magellan LX
Fuel Wood
Maximum Heat Output 100,000 BTUs
Heat Area 1,000 - 3,000 sq. ft.
Optimum Efficiency 77.75%
Unit Dimensions 36-5/8"H x 28-1/8"W x 34-1/4"D
Firebox Dimensions 15-1/8"H x 18"W x 22-1/2"D
Firebox Opening Size 9-1/4"H x 15-1/8"W
Max Log Length 22" (16" Recommended)
Average Burn Time 4-14 hr.
Emissions 1.56 g/hr.
Flue Size 6"
Minimum Chimney Height 12'
Weight 370 lbs.
UL-Certified Yes
EPA Approved Yes

J.A. Roby Magellan LX Wood Stove
J.A. Roby Magellan LX Wood Stove
J.A. Roby Magellan LX Wood Stove

Click Here to Order!

NOTE: Prices are subject to change due to rising steel prices.
