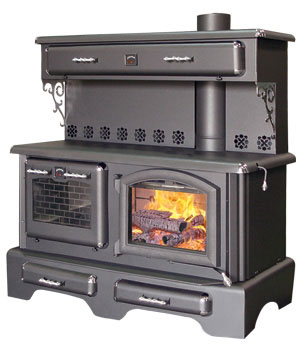

J.A. Roby Cuisiniere Wood Cookstove
A newly improved creation of the old style wood cookstoves, this new design from J.A. Roby is improved to be economically friendly and efficient without losing the old style grandeur.
Check out the tabs below for useful information, pictures, and more!
Page updated 1/5/21
- Photos (13)
- Extended Info
- Videos (8)
- Reviews (2)
- Add Review
Note: Please note that there are consumer reviews posting about the quality of the baking oven. As of 2015 J.A. Roby redesigned the engineering of the baking oven. Prior to 2015, the baking oven was not convection, thus the heat did not flow around the baking oven. In 2015, J.A. Roby redesigned the Cuisienere Wood Cook Stoves to include a convection baking oven. Thus, the heat flows in the top left side (when facing the stove) and flows downward, up the right side, and accross the top oven the oven and out the flue stack. Since this resdesign, we have had many customers reporting oven temperatures up to 550 degrees!
- Model with two cast iron doors
- High efficiency CSA B415.1-10 certified appliance
- MONTREAL ISLAND APPROVED
- Recommended Heating Area (sq.ft) : 1500 – 2300
- Color: Metallic black
- Model: Pedestal
- Convection and radiation heating system
- Glass air-wash system on firebox side
- Easy to access ash drawer
- Cooking area 16" X 47"
- Glass oven door
- Food warmer
- Thermometers on oven and food warmer
- Handles, corners and chrome ornaments
- Low clearance to combustible material
- Baffle: Fiber ceramic
- Outdoor air intake
- Firebox lined with refractory bricks for better heat distribution
- Stainless steel secondary air system improving gas combustion
- Recommended chimney: 6’’
- Optimum efficiency 88%
- Low emissions 1,3 g/h
- LHV 78.6%
- Log length 19"
- Tested as per applicable standards by Intertek
- EPA Exempt (learn more here)
- Washington State Approved (learn more here)
- Black enameled cast iron cooking plate
*Please Note: This stove is certified with an emission level as low as 1.349 Gr/Hr and has an efficiency rating of 78.6% (LHV). These results were obtained within official tests conducted by the CSA B 415.1-10 emission standard, which is the Canadian environmental standard that is closest to the environmental standard of the U.S. EPA, and the ULC-S-627.00 safety standard, which is the Canadian equivalent to the UL safety standard in the USA.
Be sure to check out our Cookstove Community website cookstoves.net; the ideal place online to connect with other wood cookstove users over stoves, self-sufficient living, alternative energy, and more! Take a look at our collection of articles, photos, and videos and be sure to visit the forums to talk to like-minded folks from all over.
|Specifications||J.A. Roby Cuisiniere|
|Type of fuel||Wood|
|Heating Area||1500 - 2,300 sq ft|
|Heat Output||Up to 95,000 BTU/hr Dry seasoned wood|
|Overall Dimensions (W x H x D)||50 3/8" W x 55" H 28" D|
|Overall Firebox Dimensions (W x H x D)||19" x 12 ¼" x 19 ¾" | 48.26 cm x 31.12 cm x 50.17 cm|
|Interior Oven Dimension (W x H x D)||17″ x 14″m x 19 ⅛" | 43.18 cm x 35.56 cm x 48.26 cm|
|Door Opening Dimensions||16 ¼" x 10 ½" | 41.28 cm x 26.67 cm|
|Food warmer Dimensions||46 ¼" W X 10" H X 12" D|
|Floor to Cooktop||31 3/4"|
|Weight||580 lbs / 263.08 kg|
|Type of chimney||2100º F. - 650º C.|
|Flue||6" - 15.24 cm|
|Flue Location (To Center of Flue)||15" from Stove Right Side / 7" from Rear of Stove|
|Minimum Chimney Height||12' - 3.66 m|
|Maximum Log Length||19" - 48.26 cm|
|Emissions Tested||CSA B415.1-10|
|Safety Tested||UL 1482 / ULC STD S627|
|Mobile Home Approved||No|
|Minimum clearances to combustibles|
|Back (using double wall black stove pipe)||12" - 30.48 cm|
|Back (using single wall black stove pipe)||16 1/4" - 41.28 cm|
|Side||18" - 45.72 cm|
|Corner||18" - 45.72 cm|
|Top (measured from floor)||84" - 213,36 cm|
Can't find the answers for your questions? Give us a call at 1-800-968-8604 or email us and speak to our knowledgeable staff with 50+ years of combined wood-burning experience!
Back of Stove
Smoke Bypass System
Top with Mirror in Chrome
Vesta Finalist Plaque
** Residential, curbside delivery via freight truck with a lift gate is included for shipping in the Continental U.S.A. (some exceptions may apply). Please inquire with our sales staff if you have specific shipping needs such as international, freight terminal and/or business deliveries or if you need a smaller truck size. Click here to see Obadiah's Shipping Terms.
Please call or email us today to order! One of our sales consultants will help you on your way to great, home wood-fired cooking!
Be sure to check out our newly improved Cookstove Community website cookstoves.net; the best place online to connect with other cookstove users over stoves, self-sufficient living, alternative energy, and more! Take a look at our selection of videos, articles, and photos, and be sure to visit the forums to connect with like-minded folks from all over.
If you are planning to cook with a cookstove, you will need to understand some basic fire safety. Remember, extinguishing a grease or oil fire with water is not a good idea.
