DS Stoves DS4200 AquaGem Coal Boiler
The DS4200 AquaGem Coal Boiler by D.S. Machine Stoves is Amish designed and hand crafted for maximum efficiency and less fuel consumption. This high quality efficient boiler provides an effective method of heating a home or other building and can also meet hot water needs.
The AquaGem 4200 is made with integrity in the USA by an industry leading coal boiler manufacturer, DS Stoves.

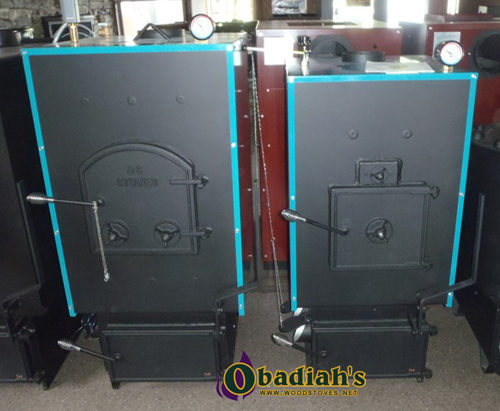

(Note: The DS4200 is a larger version of the DS3200.)
- Photos (17)
- Add Review
DS Machine Stoves efficient units are Amish made and built to last. The DS4200 AquaGem’s sturdy construction is based on 30 years of experience in designing and engineering boilers. Only the best cast iron grate system available is used and they have skillfully placed the circulating water in the front of the boiler to prevent cracking.
The DS wood and coal boilers are made with hefty 1/4 inch steel and are pressure tested to 120 PSI. Water temperature of the 4200 is easily maintained and the design of the heat exchanger maximizes efficiency. Moreover, there is a domestic water heating option or the boiler can be added on to an existing hot water system.
- Burns Coal
- Safety tested to UL standards
- External shaker handle

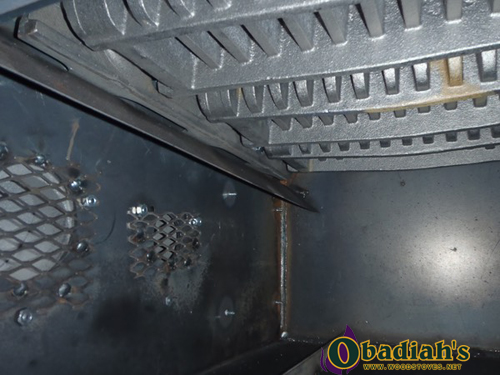

- Heavy duty cast iron grate system

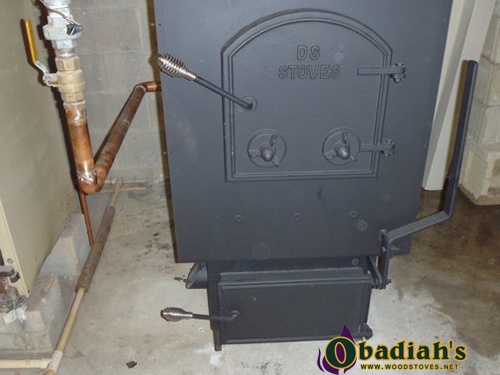

- Cast iron doors
- Large 9” cast iron ash door
- Secondary air to burn gases

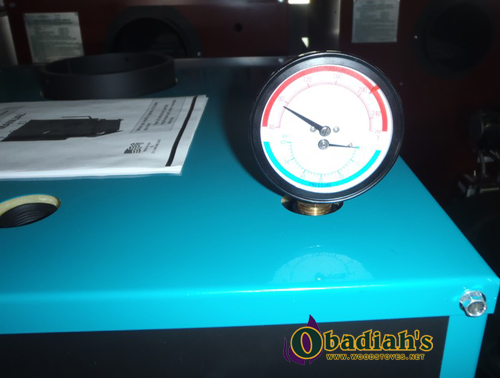

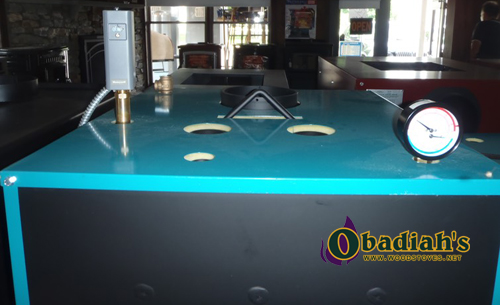

- Water temperature and pressure gauge
- 30# pressure relief valve

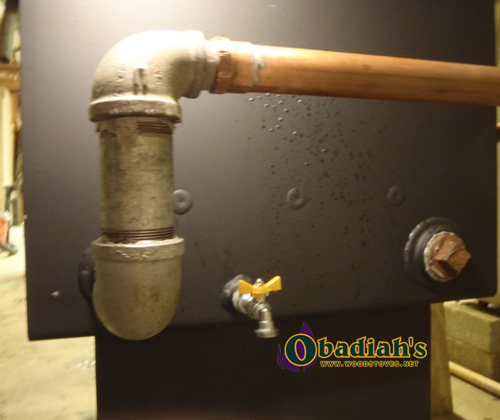

- 3/4” boiler drain

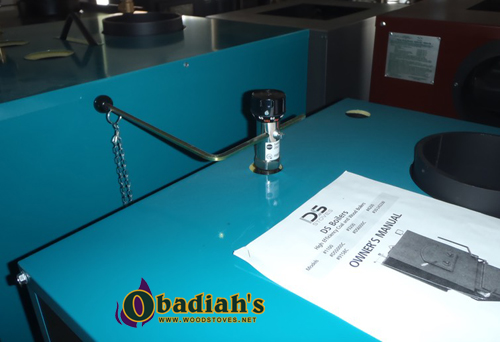

- Samson draft regulator

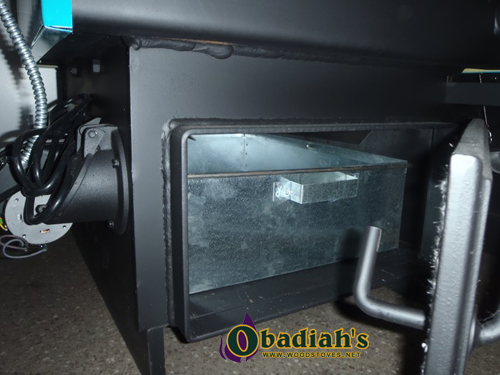

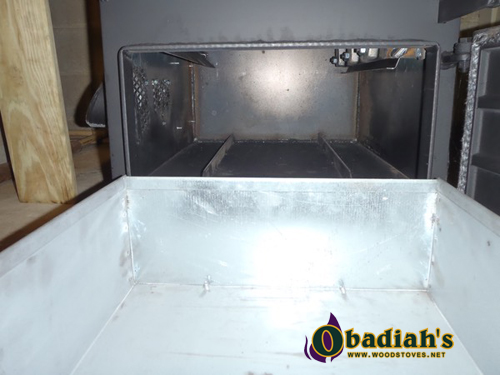

- Large capacity ash pan

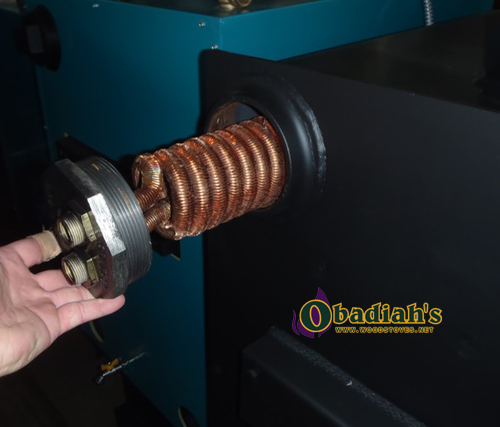

- 4 gallon per minute domestic water coil
- Insulation – sheet metal cabinet

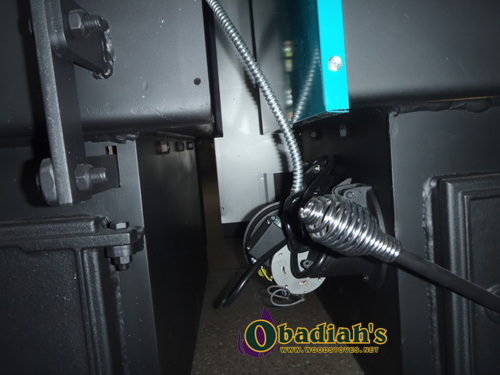

- Forced draft
- Rear exhaust option
|Specifications||DS Stoves DS4200 AquaGem Boiler|
|Fuel||Wood & Coal|
|Heating Output||230,000 BTU's|
|Heating Area||Up to 5,000 sq. ft.|
|Firebox Dimensions||19” x 25" x 30”|
|Firebox Door Dimensions||14” x 14.5”|
|Firebox Volume||8.2 cu. ft.|
|Ash Door Size (W X H)||16.5” x 9”|
|Outlet and Inlet Size||2”|
|Water Capacity||45 gallons|
|Weight approx.||1250 lbs|
|Tested & Approved||UL & ULC|

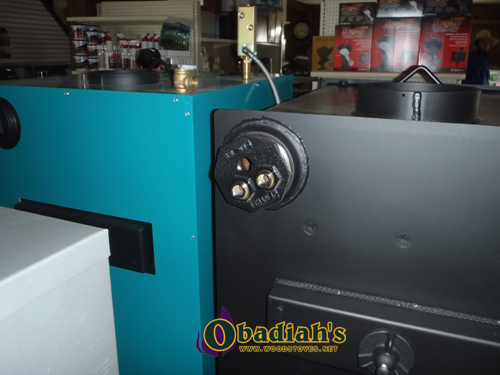

|Copper Coil 4” NPT||Optional|
The Aqua-Gem Boilers are safety tested to UL Standards.
|DS Stoves DS4200 Aquagem Boiler Model, 230,000 BTU Boiler with 4 controls||Call for Pricing|
|DS4200-5 Insulated Jacket Kit for #4200||Call for Pricing|
|4-GPMC; 4 gal per min Hot Water Coil||Call for Pricing|
|FDK-001; Forced Draft Kit (only)||Call for Pricing|

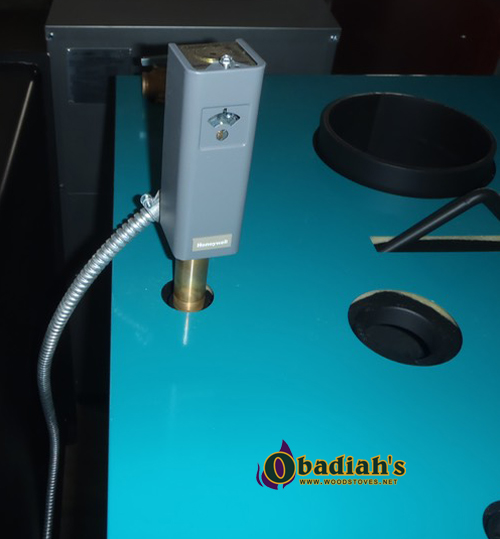

|FDK-002A; Forced Draft Kit (complete with Aquastat)||Call for Pricing|
|4-BP; 4" Black Plug (for coil prep)||Call for Pricing|
|BC-PAC 4 -Boiler Controls: Samson Reg. #30 safety valve, 3/4" Boiler drain and temperature & pressure gauge||Call for Pricing|
|Rear Exhaust (additional cost)||Call for Pricing|
