DS Stoves 100-14 Kozy King Furnace

DS Stoves 100-14 Kozy King Furnace

The Kozy King DS100-14 coal furnace is Amish made and is built for maximum efficiency and less fuel consumption.  This coal furnace's efficiency is partly due to it being fully automatic with a secondary afterburn.  The Kozy King is manufactured in the USA and is UL listed.

  • Description
  • Specifications
  • Photos (10)
  • Pricing
  • Videos (1)
  • Add Review

The DS100-14 Kozy King coal burning furnace by D.S. Machine Stoves is Amish designed and hand crafted to be clean burning and amazingly efficient - the 100-14 furnace has 85.1% efficiency!  Hot water or hot air bimetal regulators are standard in all DS Machine Stoves and the DS100-14 also has the following features.


Features:

  • Burns coal
  • Cast iron shaker grates
  • Cast Iron, airtight fire and ash door

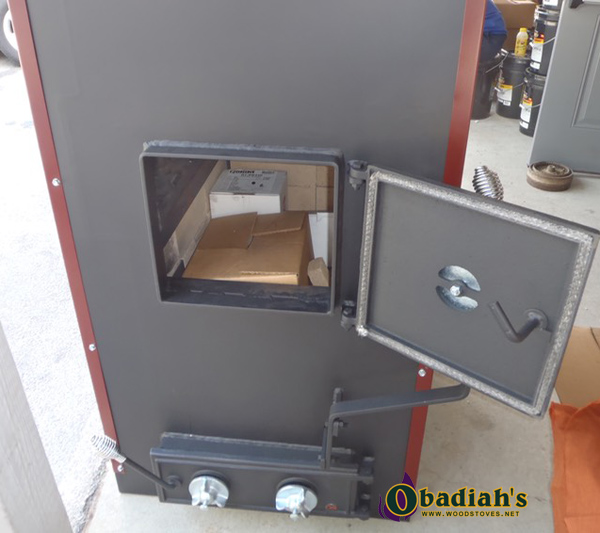

  • Large loading door
  • Large ash pan
  • 3-speed blower
  • 3/16” plate steel
  • Fully automatic
  • Wall thermostat controlled
  • Fan and limit safety controls
  • Cast iron baffle

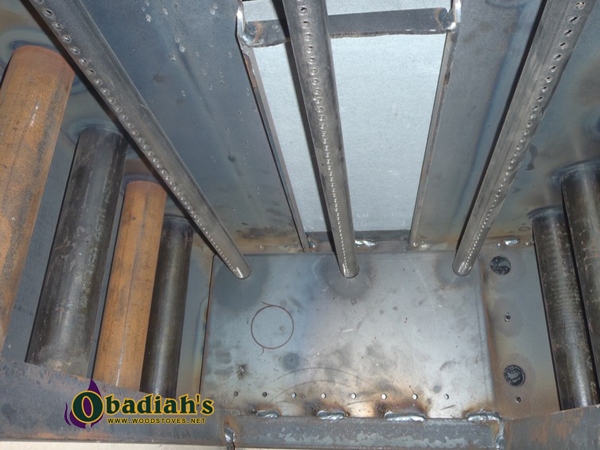

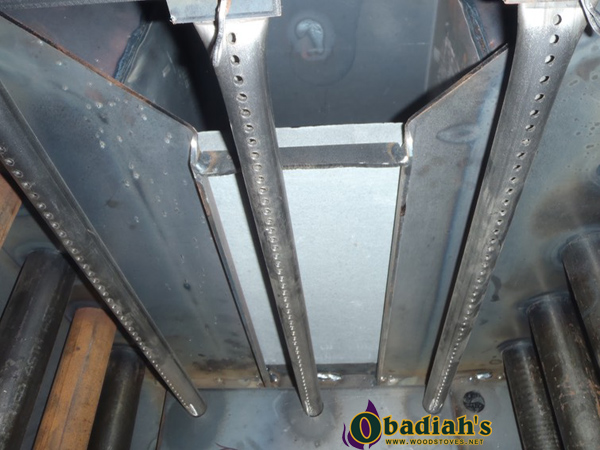

  • Special tubes through fire box for maximum heat circulation
  • Removable oxygen afterburner
  • Forced draft
  • Insulated cabinet
  • 80/20 combustion bypass
  • Filter box left or right intake (18” x 18”)



Options:

  • Domestic water coil


Resources:
Specifications DS Stoves Kozy King DS100-14 Furnace
Fire box size 14" X 20"
Fire Chamber Volume 3.5 cu. ft.
Weight 700 lbs
Width 27.5”
Height 47.75”
Depth 27”
Depth including filter box 47”
Flue size* 6”
Warranty firebox 5 years
Height to center of flue 42.5”
Ash door size 5.5” X 16.5”
Load door size 12” X 11”
Heating sq. ft. Up to 2,000 sq. ft.
BTU rating 90,000
Blower capacity, 3-speed 1100, 1650, 1350 cfm
Blower Static Pressure Low -1.47 psig
Blower Static Pressure High -1.42 psig
Plenum outlet size 18” X 18”
Efficiency 85.1%
Clearance from combustibles
Side and rear 18”
Front 48”
Top of plenum to ceiling 2”
Flue to wall 18”

*All units require a class “A” all fuel chimney installation that must conform to local and state codes.






DS Stoves 100-14 Kozy King Furnace

DS Stoves 100-14 Kozy King Furnace

DS Stoves 100-14 Kozy King Furnace

DS Stoves 100-14 Kozy King Furnace

DS Stoves 100-14 Kozy King Furnace

DS Stoves 100-14 Kozy King Furnace

DS Stoves 100-14 Kozy King Furnace

DS Stoves 100-14 Kozy King Furnace

DS Stoves 100-14 Kozy King Furnace

DS Stoves 100-14 Kozy King Furnace
Product Price
DS Stoves 100-14 Kozy King Furnace Call for Pricing
Options
23-6 Domestic Water Coil Call for Pricing

Please call or email us today for a quote on pricing and shipping.

Please call or email for a price quote and specify the model you are interested in and your zip code.  One of our sales associates will be glad to answer your inquiry.

Freight truck deliveries may be on a truck that is over 60' long.  Please inquire with our sales staff if you have specific shipping needs such as international, freight terminal and/or business deliveries or if you need a smaller size truck.  Click here to see Obadiah's Shipping Terms.

Obadiah's offer's a 20% discount and free shipping on most complete chimney systems. Email our chimney specialists for an exact quote.
