DS Stoves Energy MAX Plus 110 Furnace

DS Stoves Energy MAX Plus 110 Furnace

No Electricity Needed for this Furnace!!!

This efficient hot air furnace is designed to heat the entire home by convection.  The DS Stoves Energy MAX Plus 110 coal furnace is Amish made and is built for natural circulation of heat – no electricity or fan needed!  The DS110 circulator moves heat with natural convection – heat is transferred by means of currents in the air.  The Energy Max 110 is manufactured in the USA and is safety tested to UL standards.

  • Description
  • Specifications
  • Photos (15)
  • Pricing
  • Videos (3)
  • Add Review

The Energy Max Plus 110 coal furnace circulator by D.S. Machine Stoves is Amish designed and hand crafted to provide heat for the entire home and have a clean burn and high efficiency amazingly without the use of fans or electricity – what a plus!

The heated air from the special tubes and side jacket of the efficient hot air furnace continues to rise until it has cooled by transferring its thermal energy to the rest of the surrounding air and falls back down to the heat source at which point a convection cycle will begin.



Hot water or hot air bimetal regulators are standard in all DS Machine Stoves and the DS EXTREME Energy Max 160 also has the following features.



Features:

  • Reburn system that creates “EXTREME” clean burn for coal

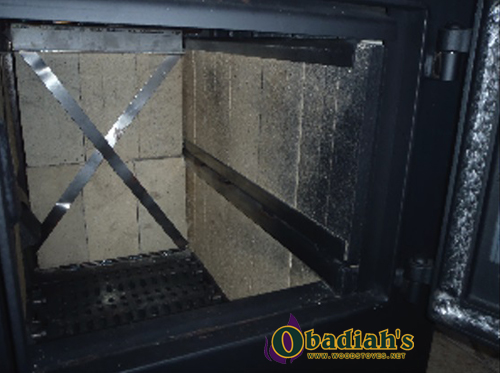

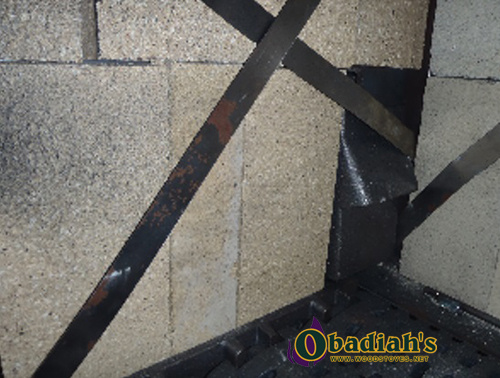

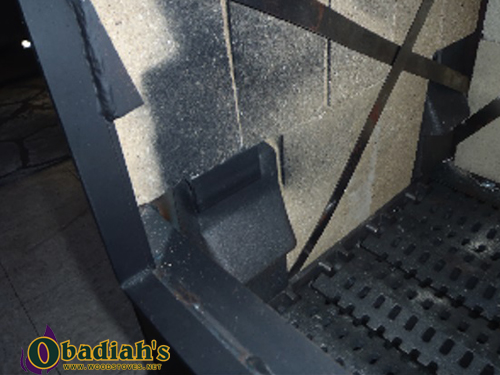

  • Firebox lined with special material to give high efficiency and a longer burn time

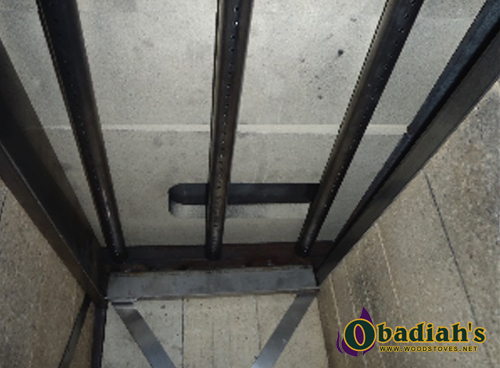

  • Heat exchanger tubes through furnace to create natural convectional circulation
  • Draft regulated with a bi-metal control
  • Ceramic glass in door with adjustable air wash system

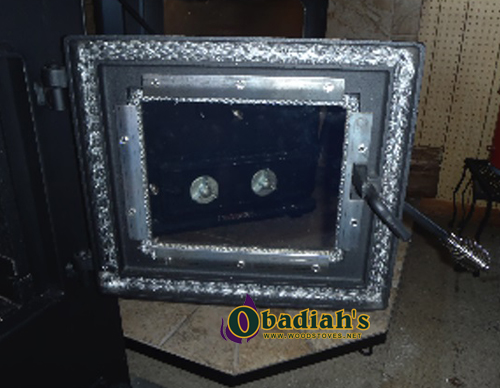

  • Cast iron door

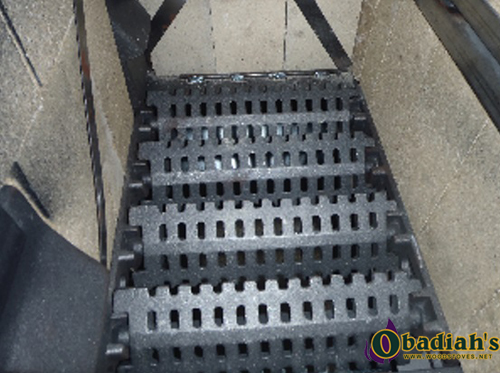

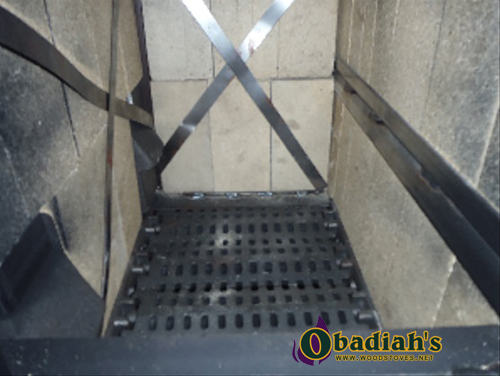

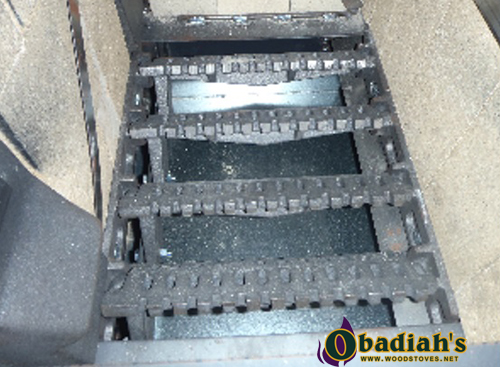

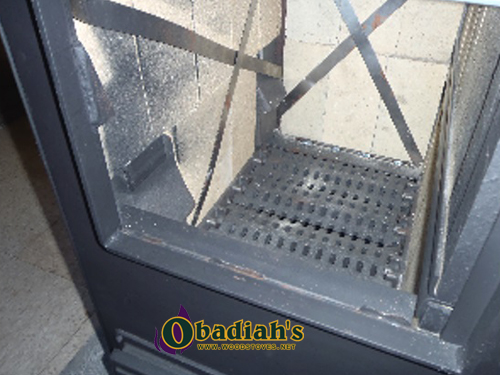

  • Heavy duty cast iron ash grate system
  • Burns coal
  • Exterior ash shaker system that reduces dust



Options:

  • Blower




Resources:
Specifications DS Stoves Energy MAX Plus 110 Furnace
Width 31.5”
Height 38.75"
Depth 34"
Fuel Coal
Heating Capacity Up to 2,400 sq. ft.
Heating Output 110,000 BTU's
Efficiency 85%
Firebox Dimensions 14” x 22”
Firebox Door Dimensions 13.75" x 12"
Firebox Volume 3.6 cu. ft.
Log Length 20”

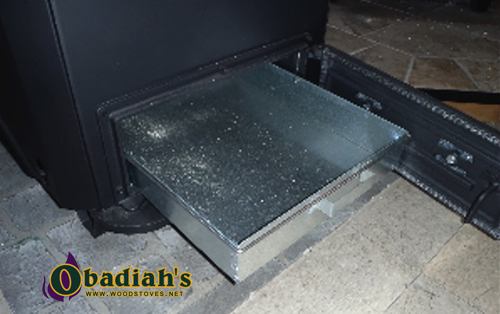

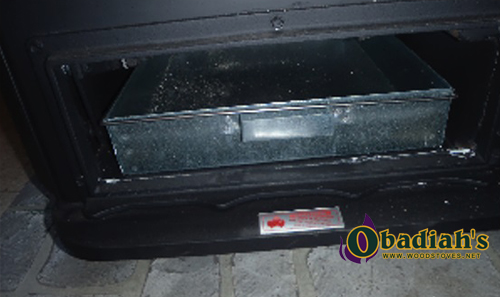

Ash Door Dimensions 16.5" x 5.5"

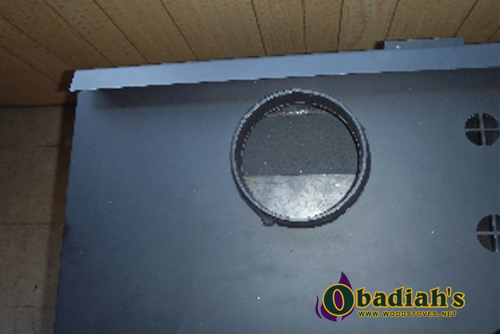

Flue 6”
Weight 750 lbs
Clearances
Side & Rear 24"
Front 48"
Flue/Stove Pipe 18"
Ceiling 36"





DS Stoves Energy MAX Plus 110 Furnace
DS Stoves Energy MAX Plus 110 Furnace
DS Stoves Energy MAX Plus 110 Furnace
DS Stoves Energy MAX Plus 110 Furnace
DS Stoves Energy MAX Plus 110 Furnace
DS Stoves Energy MAX Plus 110 Furnace
DS Stoves Energy MAX Plus 110 Furnace
DS Stoves Energy MAX Plus 110 Furnace
DS Stoves Energy MAX Plus 110 Furnace
DS Stoves Energy MAX Plus 110 Furnace
DS Stoves Energy MAX Plus 110 Furnace
DS Stoves Energy MAX Plus 110 Furnace
DS Stoves Energy MAX Plus 110 Furnace
DS Stoves Energy MAX Plus 110 Furnace
DS Stoves Energy MAX Plus 110 Furnace

Please call or email us today for a quote on pricing and shipping!

Please call or email for a price quote and specify the model you are interested in and your zip code.  One of our sales associates will be glad to answer your inquiry.

Freight truck deliveries may be on a truck that is over 60' long.  Please inquire with our sales staff if you have specific shipping needs such as international, freight terminal and/or business deliveries or if you need a smaller size truck.  Click here to see Obadiah's Shipping Terms.

Obadiah's offer's a 20% discount and free shipping on most complete chimney systems. Email our chimney specialists for an exact quote.
