DS Stoves Comfort Max 75 Furnace

DS Stoves Comfort Max 75 Furnace

NEW PRODUCT from DS STOVES!

The DS Comfort Max 75 is manufactured with integrity in the USA and would be a comfortable addition to any home.  The glass panel in the door and wood handles also give this stove a unique beauty. The Comfort Max 75 furnace is Amish made and is built for maximum efficiency and less fuel consumption.  This high quality coal furnace heats up to 1800 square feet and is built for a smaller home or workshop.

  • Description
  • Specifications
  • Photos (23)
  • Pricing
  • Videos (2)
  • Add Review

The Comfort Max 75 furnace by D.S. Machine Stoves is Amish designed and hand crafted to be clean burning and efficient.  The furnace also has some nice optional features including a couple different baffle options to help maximize stove efficiency.

Hot water or hot air bimetal regulators are standard in all DS Machine Stoves and the DS75 also has the following features.



Features:

  • Burns coal
  • Controlled with a bi-metal draft regulator

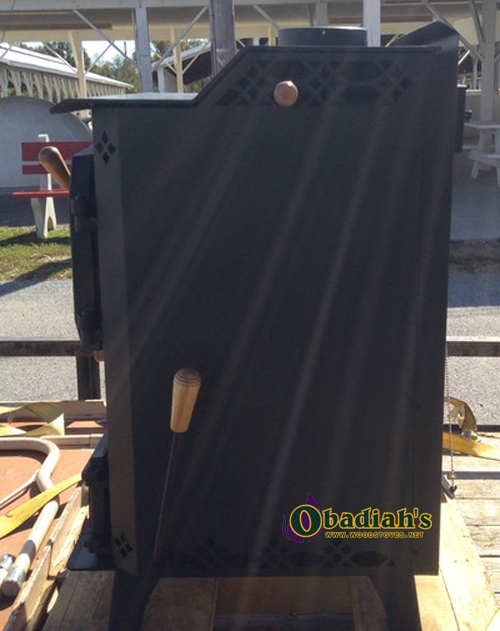

  • Exterior shaker handle for dust-free shake down

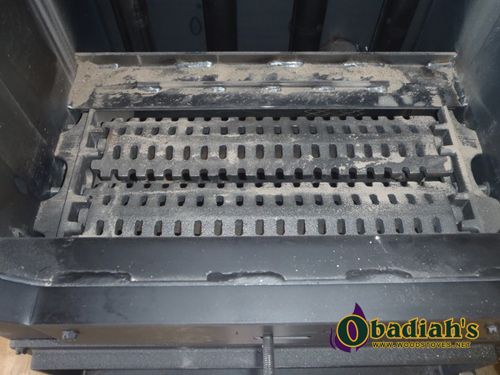

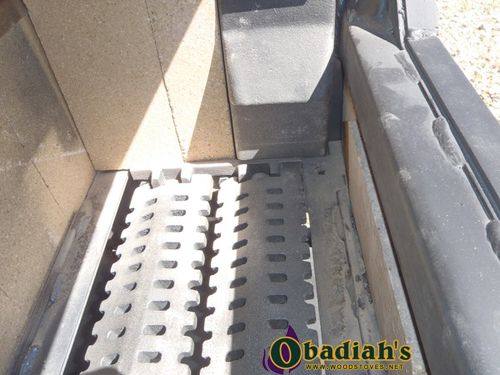

  • Cast iron doors and grates





Options:

  • Blower, 160 CFM
  • Insulated baffle, 10 5/8” X 20 3/16”
  • 2-piece cast iron downdraft baffle







Specifications DS Stoves Comfort Max 75 Furnace
Width 26.25”
Height 39"
Depth 24"
Fuel Coal
Heating Area Up to 2,000 sq. ft.
Heating Output 70,000 BTU's
Efficiency 92%
Firebox Dimensions 19” x 12”
Firebox Door Dimensions 18" x 12"
Firebox Volume 2.3 cu. ft.
Log Size 18”
Ash Door Dimensions 19" x 5.5"

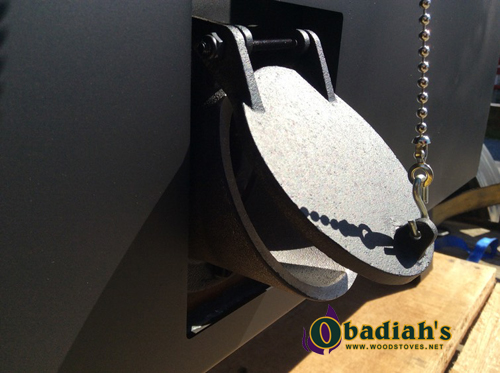

Flue 6”
Weight 595 lbs
Clearances
Rear 18"
Sides 12"
Front 48"
Flue/Stove Pipe 18"
Ceiling 36"

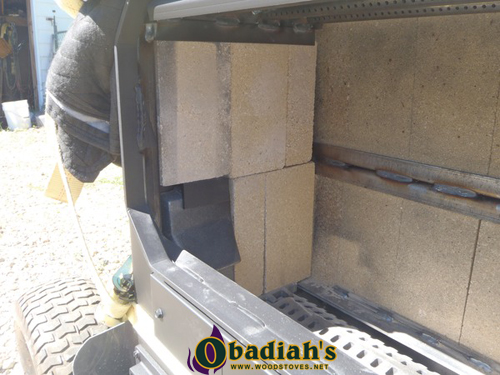

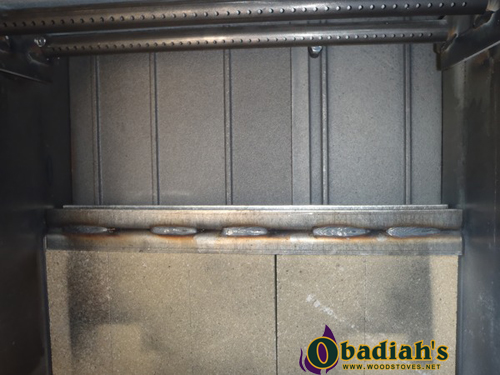

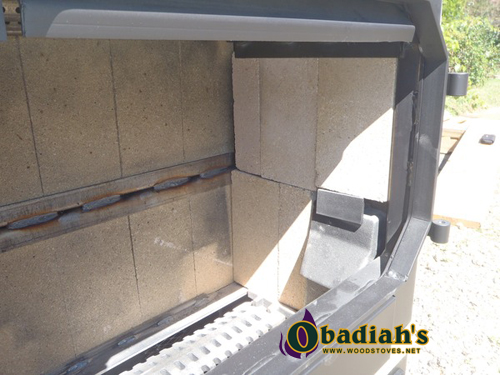

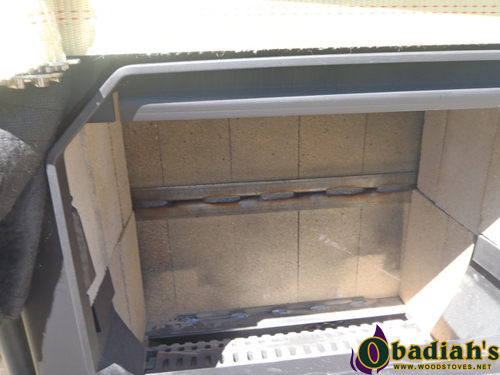

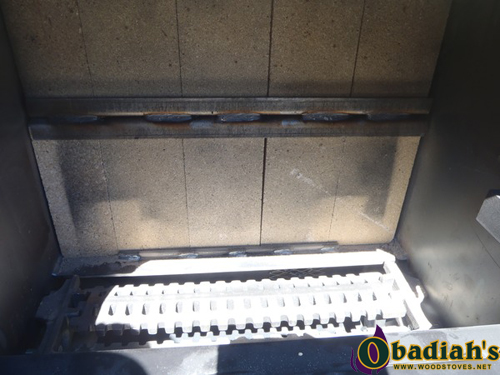

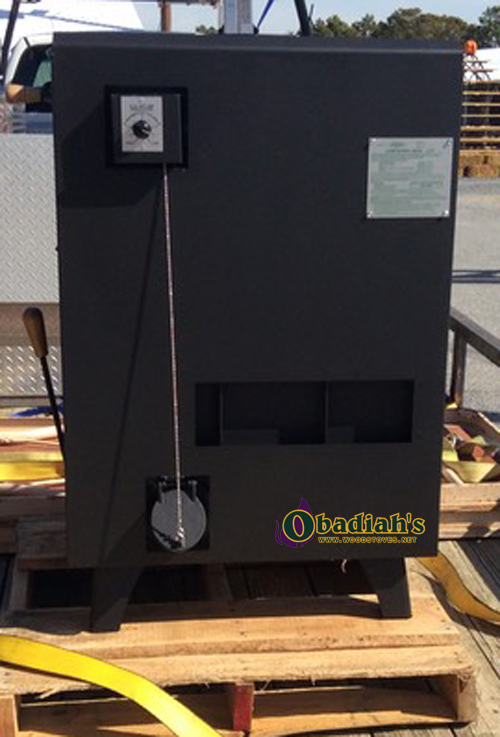

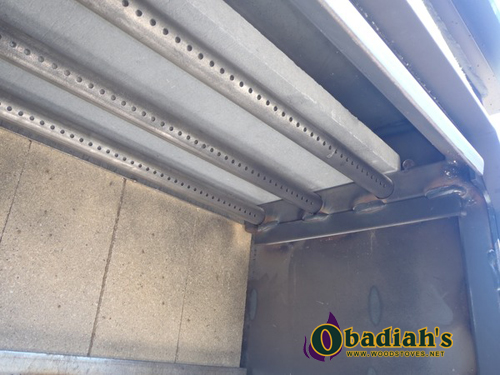

DS Stoves Comfort Max 75 Furnace
DS Stoves Comfort Max 75 Furnace
DS Stoves Comfort Max 75 Furnace
DS Stoves Comfort Max 75 Furnace
DS Stoves Comfort Max 75 Furnace
DS Stoves Comfort Max 75 Furnace
DS Stoves Comfort Max 75 Furnace
DS Stoves Comfort Max 75 Furnace
DS Stoves Comfort Max 75 Furnace
DS Stoves Comfort Max 75 Furnace
DS Stoves Comfort Max 75 Furnace
DS Stoves Comfort Max 75 Furnace
DS Stoves Comfort Max 75 Furnace
DS Stoves Comfort Max 75 Furnace
DS Stoves Comfort Max 75 Furnace
DS Stoves Comfort Max 75 Furnace
DS Stoves Comfort Max 75 Furnace
DS Stoves Comfort Max 75 Furnace
DS Stoves Comfort Max 75 Furnace
DS Stoves Comfort Max 75 Furnace
DS Stoves Comfort Max 75 Furnace
DS Stoves Comfort Max 75 Furnace
DS Stoves Comfort Max 75 Furnace
Product Price
DS Stoves Comfort Max 75 Furnace Call for Pricing
Options
75-BK; Blower Kit for Comfort Max 75 Model Call for Pricing
75-Baffle; Insulated Baffle for Comfort Max 75 Model Call for Pricing
CIDD-75; 2-piece Cast Iron Downdraft Baffle for Comfort Max 75 Model Call for Pricing

Please call or email us today for a price quote with shipping.
