DS Stoves 400-09 Kozy King Furnace

DS Stoves 400-09 Kozy King Furnace

The Kozy King DS400-09 coal burning furnace is Amish made and is built for maximum efficiency and less fuel consumption.  This coal furnace's efficiency is partly due to it being fully automatic with a secondary afterburn.  The Kozy King is manufactured in the USA and is UL listed.

  • Description
  • Specifications
  • Photos (35)
  • Pricing
  • Videos (1)
  • Reviews (1)
  • Add Review

The DS400-09 Kozy King coal furnace by D.S. Machine Stoves is Amish designed and hand crafted to be clean burning and amazingly efficient - the 300-09 furnace has 85.14% efficiency!  Hot water or hot air bimetal regulators are standard in all DS Machine Stoves and the DS400-09, a larger version of the Kozy King DS300-09, also has the following features.

Features:

• Burns coal
• Cast iron shaker grates

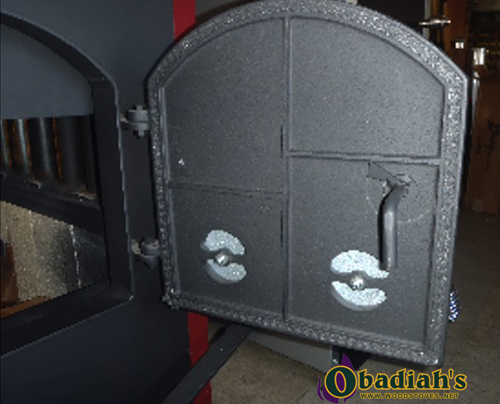

• Cast Iron, airtight fire and ash door
• Large loading door



• Large ash pan
• 3-speed blower
• 3/16” plate steel
• Fully automatic
• Wall thermostat controlled
• Fan and limit safety controls

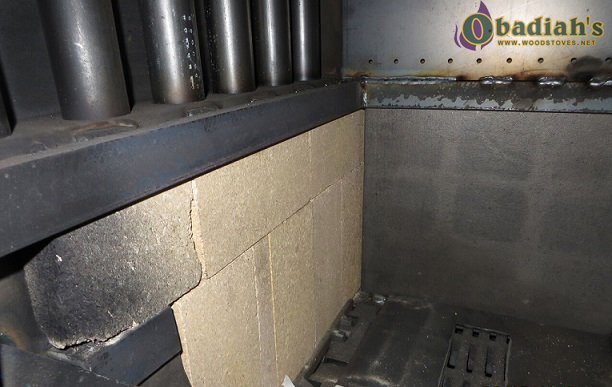

• Cast iron baffle

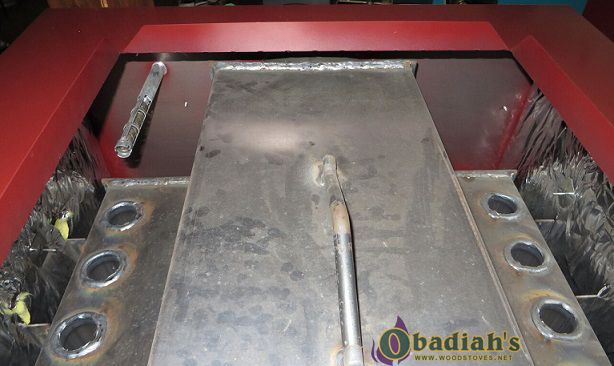

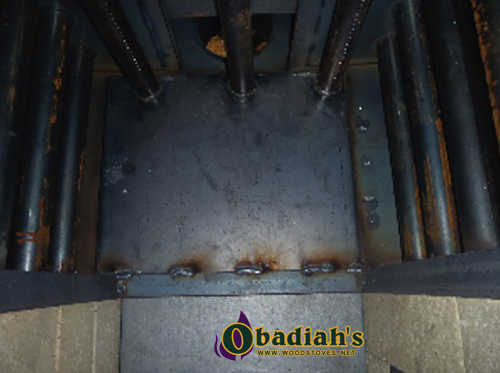

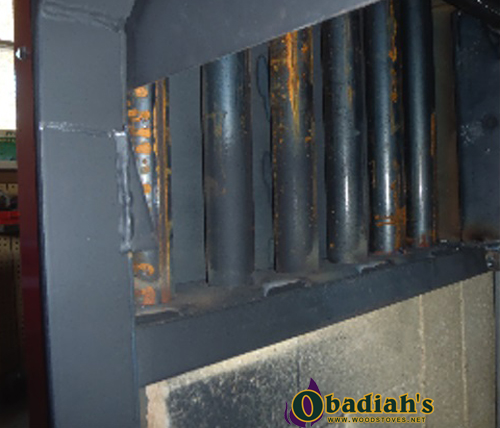

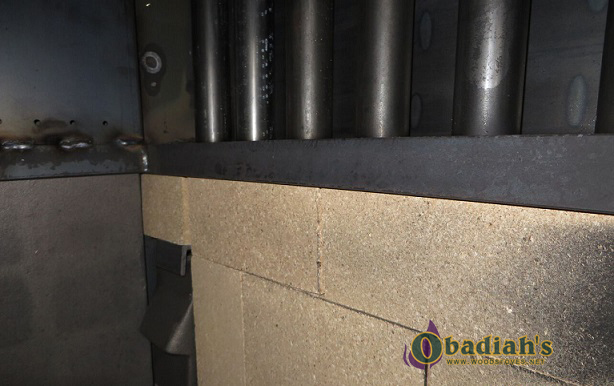

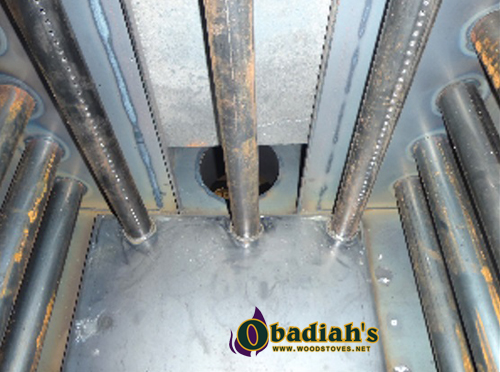

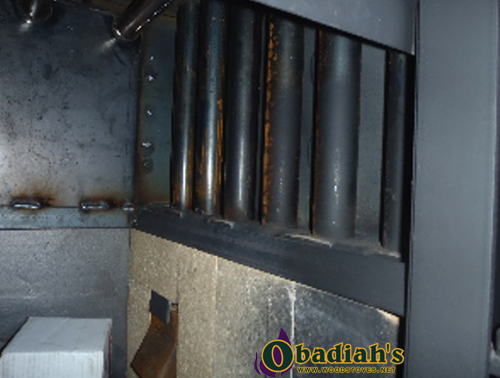

• Special tubes through fire box for maximum heat circulation


• Removable oxygen afterburner

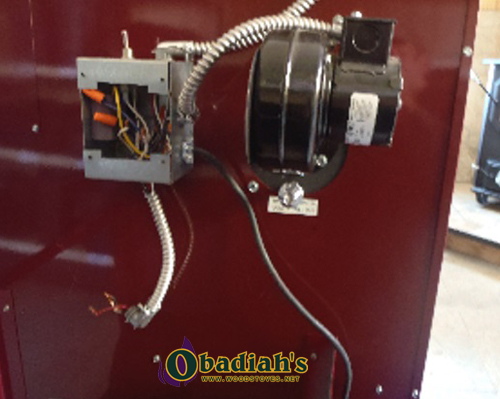

• Forced draft
• Insulated cabinet
• 80/20 combustion bypass
• Filter box left or right intake (18” x 18”)



Specifications DS Stoves 400-09 Kozy King Furnace
Fire box size 16" X 29"
Fire Chamber Volume 8 cu. ft.
Weight 820 lbs
Width 28.5”
Height 53”
Depth 36”
Depth including filter box 56”
Flue size* 7”
Warranty firebox 5 years
Height to center of flue 47”
Ash door size 6” X 16.5”
Load door size 14” X 14.5”
Heating sq. ft. Up to 4,000 sq. ft.
BTU rating 205,000
Blower capacity, 3-speed 1650-1350, 1100 cfm
Plenum outlet size 18” X 18”
Efficiency 85.1%
Clearance from combustibles
Side and rear 18”
Front 48”
Top of plenum to ceiling 2”
Flue to wall 18”

*All units require a class “A” all fuel chimney installation that must conform to local and state codes.




DS Stoves 400-09 Kozy King Furnace

DS Stoves 400-09 Kozy King Furnace

DS Stoves 400-09 Kozy King Furnace

DS Stoves 400-09 Kozy King Furnace

DS Stoves 400-09 Kozy King Furnace

DS Stoves 400-09 Kozy King Furnace

DS Stoves 400-09 Kozy King Furnace

DS Stoves 400-09 Kozy King Furnace

DS Stoves 400-09 Kozy King Furnace

DS Stoves 400-09 Kozy King Furnace

DS Stoves 400-09 Kozy King Furnace

DS Stoves 400-09 Kozy King Furnace

DS Stoves 400-09 Kozy King Furnace

DS Stoves 400-09 Kozy King Furnace

DS Stoves 400-09 Kozy King Furnace

DS Stoves 400-09 Kozy King Furnace

DS Stoves 400-09 Kozy King Furnace

DS Stoves 400-09 Kozy King Furnace

DS Stoves 400-09 Kozy King Furnace

DS Stoves 400-09 Kozy King Furnace

DS Stoves 400-09 Kozy King Furnace

DS Stoves 400-09 Kozy King Furnace

DS Stoves 400-09 Kozy King Furnace

DS Stoves 400-09 Kozy King Furnace

DS Stoves 400-09 Kozy King Furnace

DS Stoves 400-09 Kozy King Furnace

DS Stoves 400-09 Kozy King Furnace

DS Stoves 400-09 Kozy King Furnace

DS Stoves 400-09 Kozy King Furnace

DS Stoves 400-09 Kozy King Furnace

DS Stoves 400-09 Kozy King Furnace

DS Stoves 400-09 Kozy King Furnace

DS Stoves 400-09 Kozy King Furnace

DS Stoves 400-09 Kozy King Furnace

DS Stoves 400-09 Kozy King Furnace
Product Price
DS Stoves 400-09 Kozy King Furnace Call for Pricing
23-6 (Stainless Steel Domestic Water Coil) Call for Pricing

Please call or email us today for a quote on pricing and shipping.

lL4ZfGi:title}

lL4ZfGi:video}



Very pleased
February 18, 2016
Reviewer: Victoria Barrows
I was very hesitant to continue with an indoor wood furnace, but I am very happy I did after purchasing this model. I was a little leary the first few burns, as it did put off quite a "hot metal" smell, but I am midway through the Vermont winter and the smell has slowly faded away. I did call DS, as well as Obediah's to help me with a few questions, both were extremely helpful. My house is about 2800 square feet and this furnace keeps it beyond warm. I have to let the fire burn out at times because my home quickly can reach the 70+ temperature mark, and that is with the fan on low and below zero temps outside! I think this winter I will heat my entire house for less than $1000. Totally worth it!
