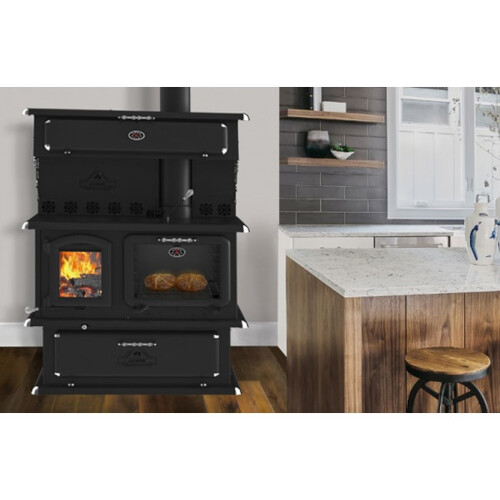

The arched cast iron door makes for a charming view of the firebox so you can enjoy the flames while preparing your meals.

Purchase the optional enamel cast iron cook plate for easy stove-top cooking and cleanup!

Features

• Model with two cast iron door, one arched one square
• EPA 2020 certified appliance
• Recommended heating area (sq.ft) : 1000 - 1800
• Color: metallic black
• Model: pedestal
• Glass air wash system (firebox)
• Easy to access ash drawer
• Glass oven door
• Food warmer
• Thermometers on oven and food warmer
• Handles, corners and chrome ornaments
• Three removable cover on top
• Low clearance to combustible material
• Baffle: ceramic fiber
• Outdoor air intake
• Firebox lined with refractory bricks for better heat distribution
• Stainless steel secondary air system improving gas combustion
• Flue pipe diameter: 6"
• Low emissions 1,9 g/h
• Log length 20"
• Mobile home approved
• Tested as per applicable standards by Intertek

Options

• Chrome decorative top with mirror for CUISTOT series (CBFTRCH)
• Additional oven rack for cookstove (CUISINIEREGF)
• Black enameled cast iron cooking plate CUISTOT series right side (CBCPCD)
• Black enameled cast iron cooking plate CUISTOT series left side (CBCPCG)
• **Cooking Plates are sold as is, there may be manufacturing bubbles or bumps, small chips and imperfections may occur in shipping and when moving them on the stove. No returns or Warranty on Cooking Plates.**

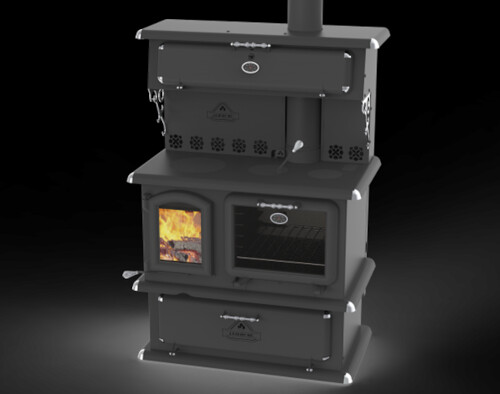

Cuistot - Metallic Black

Removable Lids

Residential, curbside delivery via freight truck with a lift gate is the method of shipping in the Continental U.S.A. (some exceptions may apply). Please inquire with our sales staff if you have specific shipping needs such as freight terminal and/or business deliveries or if you need a smaller truck size.

• J.A. Roby Cuistot Wood Cook Stove Manual

• J.A. Roby Cuistot Wood Cook Stove Brochure

• J.A. Roby Cuistot Wood Cook Stove Warranty

*Recommended heating area is determined by a formula using the home’s square footage, the insulation value of the home, and climate conditions. Species of wood burned can also produce different results.

This stove is mobile home approved, UL/ULC Tested and Washington State Approved.

Additional Info on Minimum clearances to combustible material

With these reduced clearances, this appliance takes minimum space to be installed.
Here is the minimum clearance for different certified flue pipe:

Double Wall Flue Pipe Distance -

Single Wall Flue Pipe -

Single Wall Flue Pipe with Shield*** -

Floor protection plate minimum dimensions
The following dimensions are the minimum values and they can be greater.

• Width: 57-5/8" (146.4 cm)
• Depth: 51" (129.5 cm)
• Thickness: 3/8" (1 cm)

In the United Stats, the depth can be less than the value above.

• Depth: 49" (124.5)

Clearances of the stove until the floor plate protection
The following dimensions are the minimum values and they can be greater.
Canada:

• 8" (20.3 cm) rear
• 8" (20.3 cm) side
• 18" (45.7 cm) from the door glass

United States:

• 8" (20.3 cm) rear
• 8" (20.3 cm) side
• 16" (40.64 cm) from the door glass

Floor protection
Your stove must be installed on a non-combustible material plate to protect the floor and avoid fire that might be caused by:

• Projections of sparks when opening door or loading logs;
• The heat radiation from the stove which might cause an auto-ignition to the floor or to the floor covering;
• Possible flow of creosote when there is a fire chimney.

The coating used for the protection must be non-combustible and approved according to UL1618 standard for the USA or to the local codes (Example: cement, brick, ceramic tiles, etc.)

HORIZONTAL VENTING MANDATORY PROTECTION: Non-combustible floor protections must extend beneath the flue pipe when installed with horizontal venting and it should extend 2" (51 mm) beyond each side of the pipe projection on the floor.

You can extend the protection plate while respecting the clearances of each side of the stove.

***To know how to reduce that dimension, you have to contact your local authority for installing a heat shield on a wall. The Installation with reduced clearances must comply with standard NFPA211 or CAN/CSA-B365.
