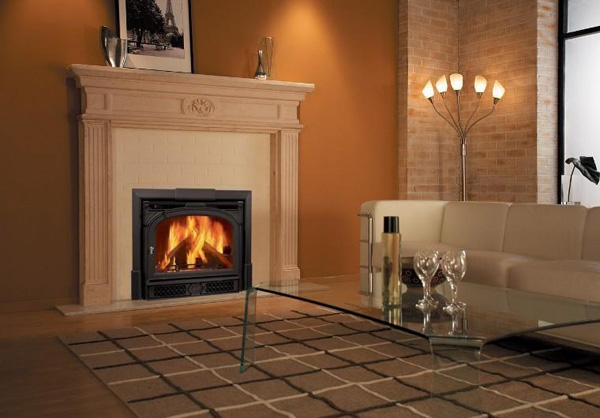

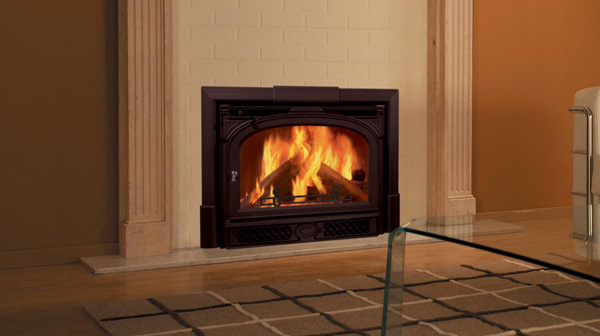

Vermont Castings Montpelier Insert

Vermont Castings Montpelier Insert

The Montpelier wood insert from Vermont Castings is an economical, highly efficient, environmentally friendly way to bring heat and comfort to your home. This is a wood stove that fits into your fireplace and offers hours of clean heat.

  • Description
  • Specifications
  • Photos (13)
  • Pricing
  • Videos (6)
  • Add Review

Including an incredible array of features and benefits, the Montpelier is EPA certified to be among the cleanest burning wood inserts available. The firebox, front, and door are made from the finest cast iron materials in the Vermont foundry and is able to provide even heat for up to ten hours. The Montpelier also includes a quiet, high volume, variable speed fan that creates greater heat circulation in your home than most traditional wood inserts. A removable baffle enables easy cleaning and rear wheels make installation simple.

Features

  • 280 sq. in. viewing area – 60% larger than our competition in the same class
  • Non-Catalytic
  • Firebox (gasketed construction), front, and door constructed of the best material for wood-heating quality cast iron from our Vermont foundry
  • 6” flue collar is detachable, secured from outside or inside the firebox, and adjustable for vertical or 30 degree offset.
  • Firebrick lined and removable baffle
  • Outside combustion air
  • Adjustable faceplate
  • Self cleaning glass door
  • Provides more heat, uses less wood

Options

  • Georgian Cast Surround - Comes in Majolica Brown and Classic Black covers 30.25” H x 41” W
  • Mead Cast Surround - Classic Black and Majolica Brown covers 281/4” H x 40 11/16” W
  • Caprice Cast Adjustable Profile Surround - with Adjustable Bevel Steel Surround comes in Classic Black and covers 25” H x 35” W
  • Steel Surrounds  - Small 4.5” – offered in Classic Black covers 27” H x 38.25” W - Large 6” – Classic Black covers 28.25” H x 41” W

  • Extended Trim Plate (not pictured) To be used behind surrounds for larger openings (not for use with Caprice) 32 3/8” H x 49” W
  • 3″ Projection Kit - reduces required fireplace depth by 3″ with cast sides and top panels
  • Choice of Classic Black or enamel Majolica Brown


Resources:
Specifications Vermont Castings Montpelier
Max output- seasoned cord wood 58,000 BTU/hr
Exhaust pipe diameter 6"
Type of door Ceramic Glass
Exterior Dimensions 30.5"W x 22.25"H x 17.25"D
Approx. Heating Area (Sq. ft.) 1,500
Test Standard-safety ULC S-627/ UL 1482
Min Fireplace Opening 27"(front width) x 21.5"H x 17.5"D x 22.5" (rear width)
Firebox Dimensions 18"W x 15"D x 12"H
Blower 150 CFM
Max Log Lenght 22"
Glass Surface 280 sq in.
Warranty Limited Lifetime

Dimensions



Clearances and Minimums


Vermont Castings Montpelier Insert

Vermont Castings Montpelier Insert

Vermont Castings Montpelier Insert

Vermont Castings Montpelier Insert

Vermont Castings Montpelier Insert

Vermont Castings Montpelier Insert

Vermont Castings Montpelier Insert

Vermont Castings Montpelier Insert

Vermont Castings Montpelier Insert

Vermont Castings Montpelier Insert

Vermont Castings Montpelier Insert

Vermont Castings Montpelier Insert

Vermont Castings Montpelier Insert
Main Unit Price
Vermont Castings Montpelier Wood Burning Insert - Black Comes Standard $2555.10
Color Options
Majolica Brown $460
Surround - Must Select One to Complete Unit
Caprice Cast Profile Surround - Cast Profile Surround - Classic Black (25"H x 35"W) $539
Georgian Cast Surround - 30" Cast Georgian Surround - Classic Black (30.25"H x 41"W) $869
Georgian Cast Surround - 30" Cast Georgian Surround - Majolica Brown (30.25"H x 41"W) $1189
Mead Cast Surround - Mead Cast Surround - Classic Black (28.25"H x 41 .7"W) $619
Mead Cast Surround - Mead Cast Surround - Majolica Brown (28.25"H x 41.7"W) $879
Steel Surround panels - Small Steel Surround 4.5 inch, Black (27"H x 38.25"W) $309
Steel Surround panels - Large Steel Surround 6 inch, Black (28.25"H x 41"W) $319
Steel Surround panels - DIY inside Fit (non-combustible backer material and paint not included) $73

* Includes Free shipping in Contenental US

Please call or email for information regarding Vermont Castings products.  Please specify the model you are interested in and your zip code.
