DS Stoves 200-10 Ecomiser Furnace

DS Stoves 200-10 Ecomiser Furnace

The Ecomiser DS200-10 wood and coal burning furnace is Amish made and is built for maximum efficiency and less fuel consumption.  This wood or coal furnace's efficiency is partly due to it being equipped with a manual draft and a secondary reburn.  The DS200-10 is manufactured in the USA and is UL listed.



  • Description
  • Specifications
  • Photos (23)
  • Pricing
  • Videos (1)
  • Add Review

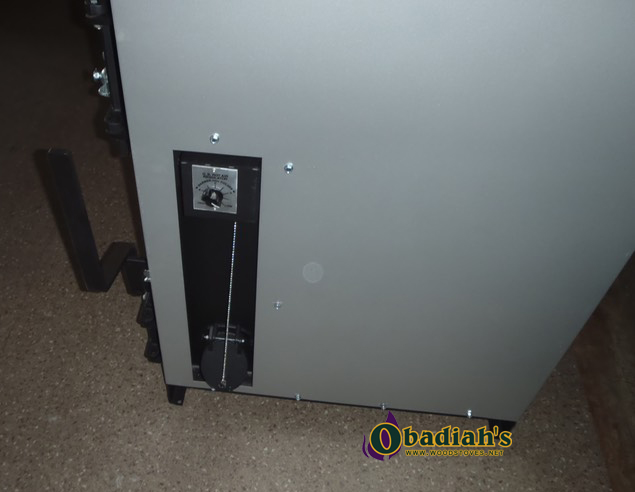

The DS200-10 Ecomiser furnace by D.S. Machine Stoves is Amish designed and hand crafted to be clean burning and efficient - the 200-10 furnace has 76.4% efficiency.  Hot water or hot air bimetal regulators are standard in all DS Machine Stoves and the Ecomiser also has the following features.

Features:

  • Burns wood and coal

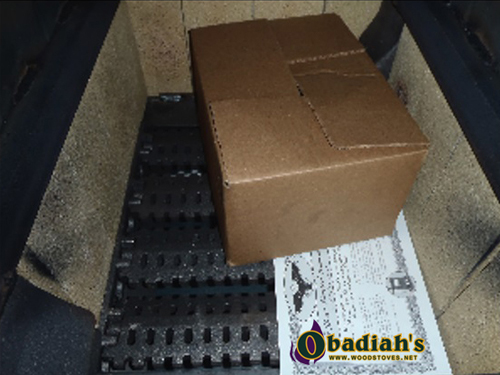

  • Cast iron shaker grates

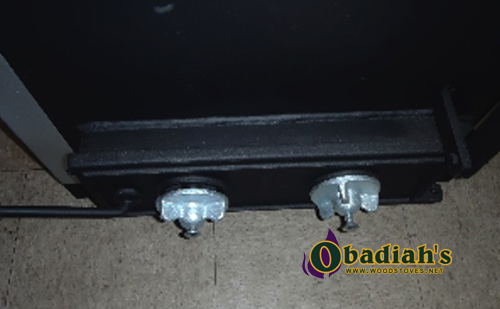

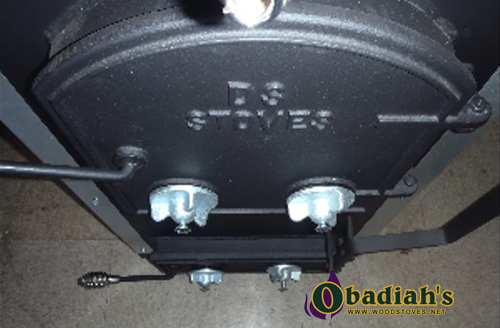

  • Air tight cast iron fire and as door

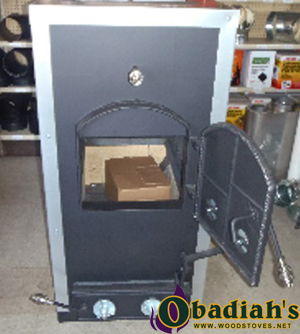

  • Large loading door

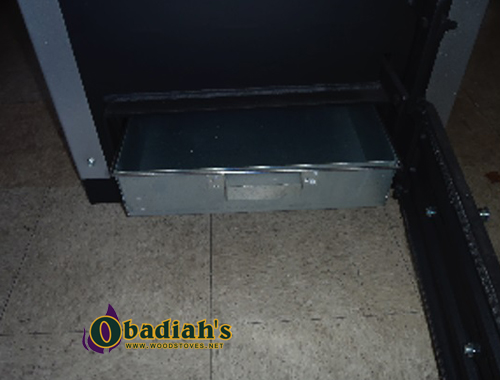

  • Large ash pan
  • 3/16” plate steel

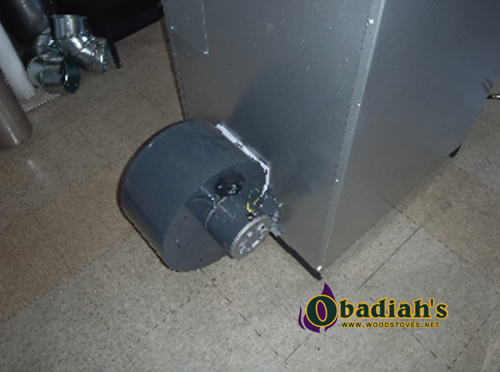

  • Auto on and off blower

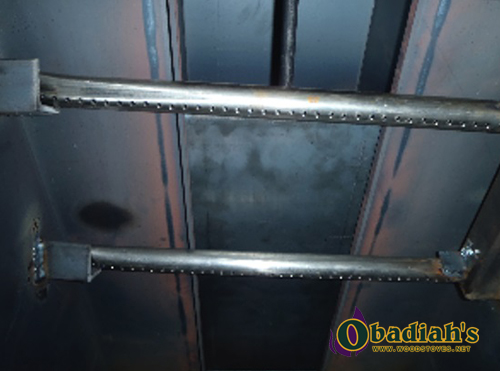

  • Removable oxygen reburn system



Options:

  • 18” x 18” filter
  • Box with left or right inlet



Specifications DS Stoves 200-10 Ecomiser Furnace
Width 24”
Height 49.75”
Depth 29.5”
Fuel Wood & Coal
Heating Area Up to 2,500 sq. ft.
Heating Output 120,000 BTU's
Efficiency 76.4 %
Firebox Dimensions 16" x 24"
Firebox Door Dimensions 14” x 14.5”
Fire Chamber Volume 5.5 cu. ft.
Log Length 22"
Ash Door Dimensions 16.5” x 5.5"
Plenum Outlet 18” x 18”
Depth (including filter box) 50.5”
Height to center of flue 44”

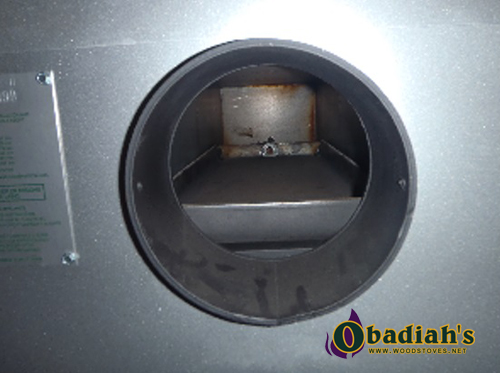

Flue 6”
Weight 500 lbs
Blower capacity 965 cfm
Clearances
Side 18”
Rear 24"
Front 48”
Flue/Stove Pipe 18”
Top of plenum to ceiling 2”

*All units require a class “A” all fuel chimney installation that must conform to local and state codes.




DS Stoves 200-10 Ecomiser Furnace

DS Stoves 200-10 Ecomiser Furnace

DS Stoves 200-10 Ecomiser Furnace

DS Stoves 200-10 Ecomiser Furnace

DS Stoves 200-10 Ecomiser Furnace

DS Stoves 200-10 Ecomiser Furnace

DS Stoves 200-10 Ecomiser Furnace

DS Stoves 200-10 Ecomiser Furnace

DS Stoves 200-10 Ecomiser Furnace

DS Stoves 200-10 Ecomiser Furnace

DS Stoves 200-10 Ecomiser Furnace

DS Stoves 200-10 Ecomiser Furnace

DS Stoves 200-10 Ecomiser Furnace

DS Stoves 200-10 Ecomiser Furnace

DS Stoves 200-10 Ecomiser Furnace

DS Stoves 200-10 Ecomiser Furnace

DS Stoves 200-10 Ecomiser Furnace

DS Stoves 200-10 Ecomiser Furnace

DS Stoves 200-10 Ecomiser Furnace

DS Stoves 200-10 Ecomiser Furnace

DS Stoves 200-10 Ecomiser Furnace

DS Stoves 200-10 Ecomiser Furnace

DS Stoves 200-10 Ecomiser Furnace
Product Price
DS Stoves 200-10 Ecomiser Furnace Call for Pricing
Options
23-6 (Domestic Water Coil) Call for Pricing
200-FB (Filter Box) Call for Pricing

Please call or email us today for a price quote with shipping.
