Obadiah's - Napoleon Woodstoves

Napoleon EPA Woodstove Leg Model Comes in Two Sizes - Model 1100PL and 1400PL

Features

2 different sizes available - see specs below
The easy operation of a single lever burn control regulates primary and secondary air establishing a perfect mixture and providing a clean burn
EPA approved to Phase 2 of the 1990 test Standards and below Washington's DEQ Phase 3 with emissions as low as 3.7 grams per hour
Economical 6" flue assures you of efficiency and cost saving installations
Secondary air tube insulated with ceramic fiber and protected with a stainless steel cover plate ensures complete combustion

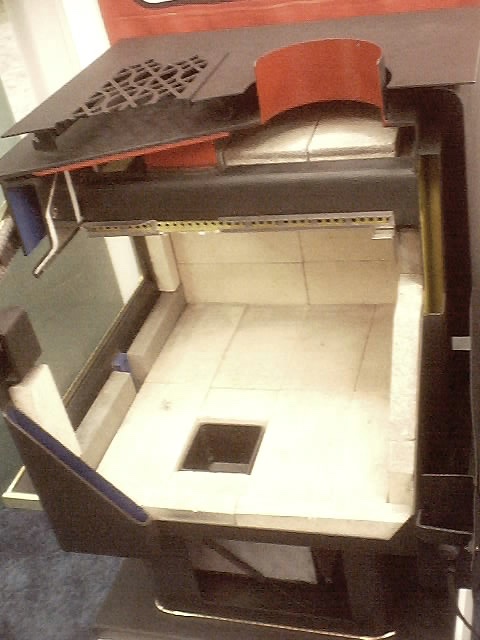

Upper firebox lined with ceramic fiber baffles. The advantage of light weight ceramic is three fold:
Ease of installation: only two pieces
Lighter, easier to handle.
The thermal dynamics of ceramic fiber allows for quicker startup and a hotter, cleaner burn
Non-catalytic high tech design eliminates the need for a delicate ceramic catalytic combustor which can deteriorate over time.
Large viewing area -- air wash in combination with high temperatures keeps the viewing glass clean
President's Limited Lifetime Warranty

Accessories

Variable speed blower kit
Blower guard
Thermostatic heat sensors are available which, automatically turns the blower on and off as the unit is heated and cooled
Optional ash drawer kit available
Painted black, 24 karat gold plated or satin chrome plated louvres
Door Options
Arched door in painted black, 24 karat gold plated, or brushed stainless steel
Early American webbed arch door in 24 Karat gold plated, painted black or satin chrome plated
Traditional painted black steel legs
Ornamental cast iron legs in 24 Karat gold plated, painted black or satin chrome plated

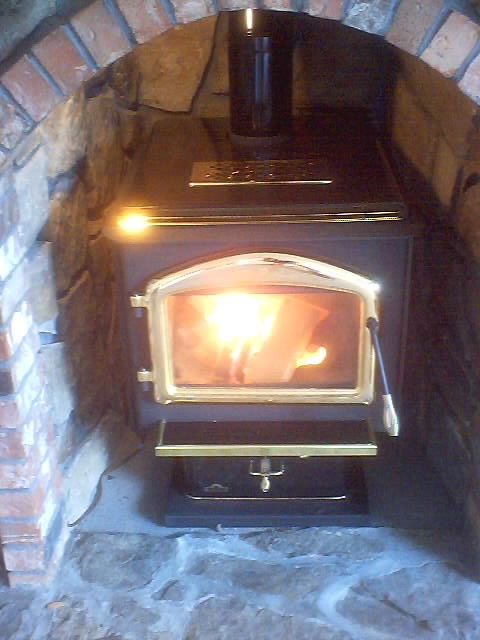

Shown with 24k Gold arched door and 24k Gold legs

Shown with Satin Chrome webbed arch door
and Satin Chrome legs

1100 PL Small Stove Leg Model	Napoleon's Suggest Retail
Stove Body	$789
1400 PL Medium Stove Leg Model
Stove Body	$939
Door Options
Black Door	$249
Gold / Chrome Door	$449
Black Web Door	$269
Gold / Chrome Web Door	$479
Leg Options
Black Steel Legs	$111
Black Cast Iron Legs	$168
Gold / Chrome Plated Cast Iron Legs	$329
Ash Drawer Kit	$169
Options
Blower	$224
Blower Gaurd	$10
Thermostatic Sensor Control	$35
Solid Brass Side Rail	$53

Our prices are to low to show according to the manufacturer. Please e-mail us and ask for the Napoleon price list, please specify model and zip code.

PRICES DO NOT INCLUDE SHIPPING. PLEASE EMAIL YOUR ZIP CODE FOR A SHIPPING QUOTE. PLEASE SPECIFY THE MODEL YOU ARE INTERESTED IN.

Specifications

Model 1100PL

Model 1400PL

Emissions (grams per hour)
4.1

3.7

Width x Height x Depth (inches)
25 1/2 x 33 1/4 x 22 1/2

25 1/2 x 33 1/4 x 27

Firebox Chamber (W.H.D.) (inches)
18 x12 x 13 1/2

18 x 12 x 18

Firebox Capacity
1.7 cu. ft.

2.25 cu. ft.

Door size (height x width)
14 3/4 x 19 3/8

14 3/4 x 19 3/8

Weight without bricks
215 lb.

250 lb.

Weight of Bricks
110 lb

145 lb.

Approximate Area Heated*
sq. ft. 600 - 1,500

1,000 - 2,000

Heat output BTU/h**
11,700 - 42,200

11,400 - 41,300

Heat Output BTU/h (high burn)***
55,000 BTU

70,000 BTU

Burn Time (low fire)*
7 hours

9 hours

Catalytic combustor
no

no

Mobile home approved
no

no

R-2000 approved (Canada)
yes

yes

Max. log size
18"

18"

Outside combustion air
no

no

Flue diameter
6"

6"

Flue size prefabricated
6"

6"

Minimum Clearances with Single Wall Chimney Connector from Stove to Combustibles

Rear
10"

12"

Side
12"

12"

Corner
6"

6"

Minimum Clearances with Approved Double Wall Pipe from Stove to Combustibles

Rear
6"

6"

Side
10"

10"

Corner
2"

4"

*Figures may vary with individual conditions. Please consult your specialty dealer

**EPA (Environmental Protection Agency) rated BTU/HR with softwood test fuel (for emissions testing only) - no refueling

***Wolf Steel Ltd. own test results showing realistic BTU using hardwood logs with regular refueling. Heat output will differ depending on chimney draft as well as type, moisture content and size of wood.
